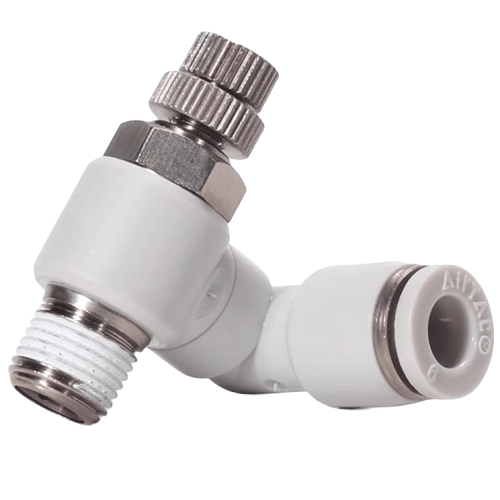

Airtac X-AJSS Universal Throttle-Type Swivel Joint Connector X-AJSS1003
AirTAC X-AJSS1003 Swivel Joint-Throttle Type Full Specifications
- Model: X-AJSS1003
- Type: 360° rotating throttle swivel joint
- Body material: Anodized aluminum alloy (A6063-T5)
- Seal material: HNBR (Hydrogenated Nitrile) + PTFE composite
- Thread size: G1/8 (BSPP)
- Max working pressure: 1.0 MPa
- Operating temperature: -20℃ to 80℃
- Flow control range: 0.05-10 L/min (air, ANR)
- Torque resistance: ≤0.3 N·m at 0.5 MPa
- Swivel angle: ±5° axial tilt compensation
- Weight: 68g ±2g
- Dimensions: 52mm(Ø) × 78mm(H) (including adjustment knob)
- Surface treatment: Black electrophoretic coating
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Multi-axis adjustable flow control joint featuring simultaneous rotation and throttling functions. Precision-machined ball-bearing swivel mechanism enables smooth 360° rotation under pressure while maintaining seal integrity. The knurled brass flow adjustment knob allows fingertip flow rate modulation with 180° rotation range. Integrated O-ring groove design prevents accidental disassembly during rotation.
- Robotic arm end-effector pneumatic circuits
- Rotary index table air supply systems
- Multi-station test equipment with rotating fixtures
- Packaging machine intermittent motion modules
- Semiconductor handling vacuum/pressure switch systems
Installation protocol:
Apply 2-3 drops of ISO VG32 pneumatic oil to swivel interface before initial use.
Avoid overtightening - recommended installation torque 12-15N·m.
For vertical mounting orientations, install flow control knob downward to prevent particle accumulation.
