Airtac X-APA Adapter - Tube Throttle Type X-APA10
$8.02
Regular price
$15.52
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APA10
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

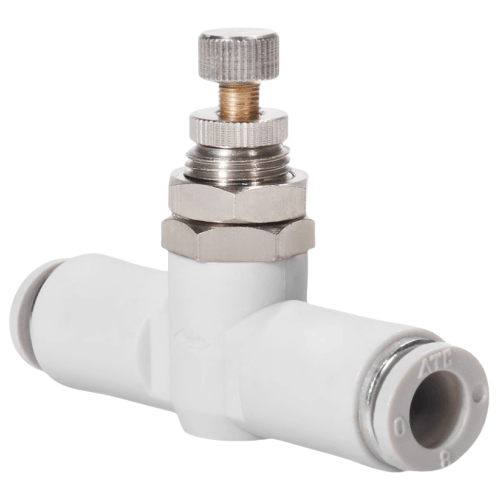

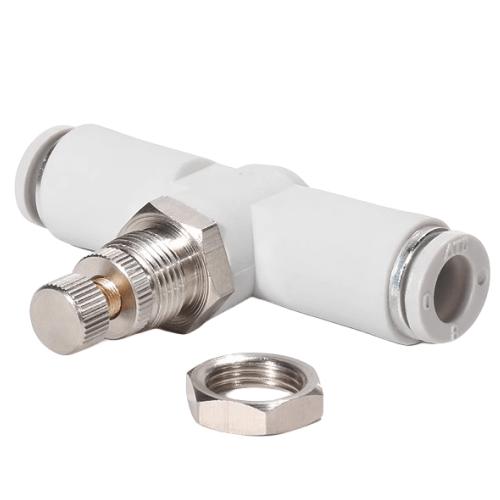

AirTAC X-APA10 Throttle-Type Fitting-Pipe Joint Technical Details
- Model: X-APA10
- Type: Throttling type push-in fitting with flow control
- Thread specification: M5×0.8 (BSPP 1/8" optional)
- Tube compatibility: Ø4mm (5/32") or Ø6mm (1/4") nylon/polyurethane tubing
- Flow adjustment range: 0.05-5 L/min (air at 0.5MPa)
- Pressure rating: 0.05-1.0 MPa
- Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
- Body material: Brass with nickel plating
- Seal material: HNBR (High nitrile rubber)
- Operating temperature: -20℃ to 80℃
- Weight: 28g ±0.5g
- Dimensions: 32mm(L) × 18mm(W) × 16mm(H)
- Adjustment turns: 20 full rotations (0.5mm pitch)
- Flow coefficient (Cv): 0.12
Precision throttling joint featuring dual-stage sealing and anti-vibration locking collar. The hexagonal adjustment knob provides 300° rotation range with tactile feedback, enabling fine flow control. Corrosion-resistant construction meets ISO 16030 standards for pneumatic connections.
Typical Applications:
- Pneumatic cylinder speed regulation in automation lines
- Vacuum system flow balancing
- Medical gas equipment pressure modulation
- Packaging machine air nozzle adjustment
- Laboratory analytical instrument gas control
Installation guidelines:
Apply 0.8-1.2Nm torque during assembly. Use thread sealant only on male threads.
Perform flow calibration after 50 operation cycles. Maximum tube insertion force: 50N.
Note: Not recommended for use with petroleum-based lubricants or hydraulic fluids.
Always purge system before adjustment to prevent particulate contamination.
