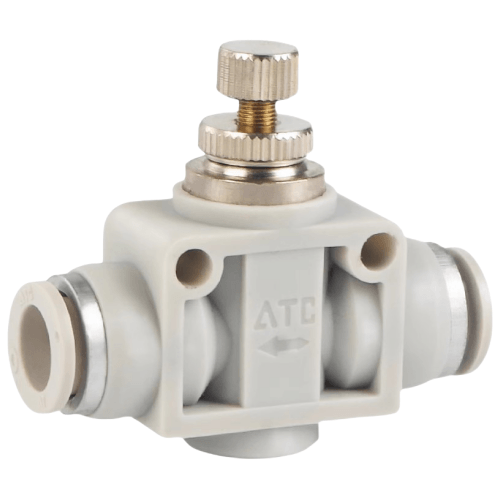

Airtac X-ASA Adapter - Tube Throttle Type X-ASA12
AirTAC X-ASA12 Throttle Type Push-in Fitting Specifications
- Model: X-ASA12
- Type: Flow control (Throttle) push-in fitting with check valve
- Thread size: PT1/8 (BSPP) or NPT1/8 optional
- Tube OD compatibility: Φ4mm or Φ6mm (switchable via internal adapter)
- Flow adjustment range: 50-1,000 mL/min (air at 0.5MPa)
- Max operating pressure: 1.0 MPa
- Leakage rate: ≤3 bubbles/min (under 0.5MPa air pressure)
- Body material: Nickel-plated brass
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -20℃ to 120℃
- Weight: 28g ±2g
- Dimensions: 34mm(L) × 21mm(W) × 21mm(H)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- IP rating: IP54 (dust and water splash resistant)
Bi-directional flow control fitting with precision needle valve mechanism and integrated check valve. Features 360° rotatable collar for tool-free tube installation and color-coded flow direction indicators (blue for inlet, white for outlet). The dual-scale adjustment knob provides both coarse (0-5) and fine (0-100) graduation markings. Includes built-in tube cutter for field adjustments.
- Pneumatic cylinder speed regulation in automation lines
- Vacuum system flow control for pick-and-place machines
- Medical gas delivery systems requiring precise flow adjustment
- Energy-saving circuits for air compressor optimization
- Laboratory pneumatic instrument calibration setups
Installation protocol:
(1) Purge lines before installation (2) Engage tube fully until "click" sound (3)
For Φ4mm tubes: Use blue marked port | Φ6mm: Red marked adapter side (4)
Apply 0.3-0.5Nm torque during final tightening. Lubricate threads with PTFE tape for NPT versions.
Maintenance note:
Perform monthly knob lubrication with silicone grease (ASG-15 spec).
Replace entire unit if adjustment torque exceeds 0.8N·m during operation.
| Property | Property Value |
|---|---|
| sku | X-ASA12 |
