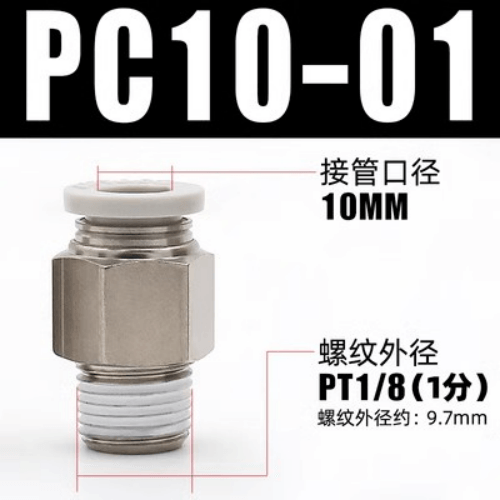

Airtac PC Threaded Straight Connector PC1001
The AirTAC Airtac PC Threaded Straight Connector PC1001 is a genuine male connector for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeMale connector
- SeriesPC
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PC Threaded Straight Connector PC1001
The AirTAC PC1001 is a PC series one-touch male connector, the straight threaded fitting in AirTAC's resin one-touch range. It joins Dia 10 mm soft nylon or polyurethane tubing to a 1/8" PT male thread. The body on the PC series is brass - a point worth knowing because most other prefixes in this catalogue use PBT for the threaded parts - with a POM release button, aluminium-alloy guide, stainless spring gasket and NBR O-ring. The 1/8" PT thread arrives with sealant already applied, so it goes straight onto the port.
Installation is the standard one-touch action: push the tube fully home and the stainless chuck grips it for a pressure-tight hold; press the release ring and the tube comes free for rework. This is the resin spec profile, not the metal BPC line: working pressure 0-1.0 MPa (0-10 kgf/cm2), vacuum to -750 mmHg (10 Torr), proof pressure 1.5 MPa and a temperature window of -20 to +70 C. The standard colour is grey; on PC fittings the D suffix changes only the release button, not the body.
Airtac PC Threaded Straight Connector PC1001 Technical Specifications
| Model | Airtac PC Threaded Straight Connector PC1001 |
|---|---|
| Type | Male connector |
| Series | PC |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PC Threaded Straight Connector PC1001
| PC | Male connector. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PC Threaded Straight Connector PC1001 Is Used
Pneumatic press cylinder feed
A mid-bore cylinder on a bench pneumatic press usually takes a 1/8" PT port. The PC1001 pushes Dia 10 mm supply line straight in, giving the flow area the downstroke needs without stepping sizes at the port.
Vacuum ejector supply line
Single-stage vacuum generators on pick-and-place heads commonly use Dia 10 mm supply tube. This connector holds the -750 mmHg vacuum side and threads into the ejector's 1/8" PT air inlet.
Conveyor gate actuator drop
Sorting and diverting gates on packaging conveyors run short air cylinders with 1/8" PT ports. A straight connector keeps the Dia 10 mm drop line aligned and easy to release when a gate cylinder is swapped.
Is the Airtac PC Threaded Straight Connector PC1001 the Right Part?
Dia 10 sits one step from the top of the PC ladder on a 1/8" thread. Step down to PC801 for Dia 8 mm tube when the actuator or airline has a smaller bore, or up to PC1201 for Dia 12 mm where you want more area and lower velocity in a short, high-demand run. At Dia 10 the fitting feeds mid-size cylinders and air tools without the stiffness penalty of 12 mm tube in tight bends. Before ordering, check the tube, not the thread: this fitting grips Dia 10 mm OD only, so 3/8" inch tube (9.5 mm) will not seal in it. If the port is a 1/4" PT female, you need PC1011 instead; keep the thread matched to the port size rather than reducing with adaptors that add leak paths.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PC Threaded Straight Connector PC1001 FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure to -750 mmHg (10 Torr), proof pressure 1.5 MPa, operating temperature -20 to +70 C. The fitting takes Dia 10 mm OD soft nylon or polyurethane tube on one side and a 1/8" PT male thread on the other. Applicable media temperature is limited by the tubing choice as well as the fitting.
Yes, it is correct. On the PC series the 1/8" thread supports tube sizes from Dia 4 up to Dia 12 mm, so Dia 10 on a 1/8" port is a standard combination. The tube bore, not the thread, sets flow capacity. If you would rather match thread size to the bore, the 1/4" version is PC1011 - same Dia 10 mm grip, larger port thread - and it is the usual pick on mid-size valve manifolds.
