Airtac PE Tee Connector PE6
The AirTAC Airtac PE Tee Connector PE6 is a genuine union tee for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeUnion tee
- SeriesPE
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PE Tee Connector PE6

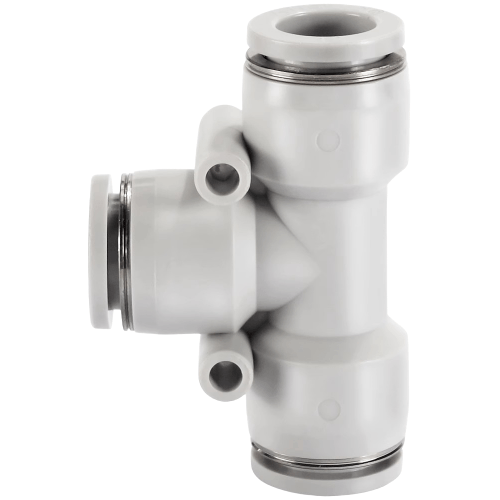

The AirTAC PE6 is a union tee from the PE series: three push-in legs, all sized for Dia 6 mm soft nylon or polyurethane tube, joining in one moulded PBT body. Because all three ports are tube ports, the fitting screws into nothing - it lives inline wherever a single 6 mm run has to divide into two, without a threaded tee, extra nipples or sealant. Push the tube home and the stainless spring gasket and chuck jaws lock it; press the POM release ring toward the body and the tube slides free again.
The PE6 runs on AirTAC's standard resin one-touch profile: 0 to 1.0 MPa working pressure (0 to 10 kgf/cm2), 1.5 MPa proof pressure, vacuum down to -750 mmHg (10 Torr) and a -20 to +70 C temperature window. Inside, an aluminium-alloy guide, stainless spring gasket and NBR O-ring do the sealing work. The body arrives in grey; the D-ordering suffix changes the body colour to black on this series if your panel scheme calls for it.
Airtac PE Tee Connector PE6 Technical Specifications
| Model | Airtac PE Tee Connector PE6 |
|---|---|
| Type | Union tee |
| Series | PE |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PE Tee Connector PE6
| PE | Union tee. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PE Tee Connector PE6 Is Used
Thermoformer vacuum branch
Splitting a 6 mm vacuum line three ways above the forming die of a small blister packer. The -750 mmHg (10 Torr) rating means the tee holds under the full draw of a single-stage ejector, not just under pressure.
Carton-taping head feed
A 6 mm supply run along a carton sealer that needs to keep going to the next station while dropping a branch to the tape-actuation cylinder. The union tee makes the split inline with zero threaded joints to work loose under machine vibration.
Bench-top pneumatic prototype
Rigging a lab test stand where three 6 mm polyurethane lines from a manifold, a regulator and a test cylinder meet. Push-in release lets you re-plumb the layout between trials without cutting tube or chasing sealant.
Is the Airtac PE Tee Connector PE6 the Right Part?
The PE6 sits mid-ladder. Step down to PE4 when you are branching thin 4 mm pilot lines where bundle space is tight, or up to PE8 when the legs feed actuators that draw more air - the bigger bore buys capacity at the same pressure without changing the fitting's footprint much. Stay on PE6 whenever the run is already 6 mm tube: unlike a reducer, every leg of this tee is one size, so there is no stepping up or down inside the body.
Match the tee to the tubing, not the port: all three legs take exactly Dia 6 mm OD tube, so a 1/4 in (6.35 mm) tube will not seat and a 6 mm metric line will not grip in an imperial-catalogue part. If you actually need to land one leg on a threaded port instead, that is the PEB male branch tee in the same catalogue - same 6 mm logic, but with a PT stud.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PE Tee Connector PE6 FAQ
Working pressure 0 to 1.0 MPa (0 to 10 kgf/cm2), proof pressure 1.5 MPa, vacuum capability -750 mmHg (10 Torr), operating temperature -20 to +70 C. All three legs accept Dia 6 mm OD soft nylon or polyurethane tube. The fitting is threaded on no port - it is a pure tube-to-tube union tee.
No. There is no thread anywhere on the part, so no PTFE tape or sealant is involved - that also removes a leak path. Installation is push-fit: square-cut the 6 mm tube, push it into each leg until it bottoms, and the chuck grips it. To remove a line, press the release ring evenly toward the body before pulling the tube out.
