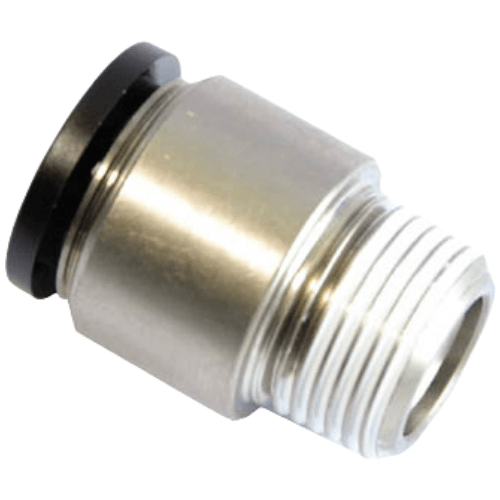

Airtac POC Round Thread Straight Connector POC1002-S
2、Threaded section integrated with sealing element, M5 metric threads feature integrated sealing washers to ensure leak-free connections;
3、Polymer connectors available in gray and black color options for optimal coordination with piping systems.
AirTAC POC1002-S Round Thread Straight Connector Specifications
- Model: POC1002-S
- Type: Female-threaded straight pneumatic connector
- Thread Standard: Metric fine thread (M5×0.8)
- Material: POM (Polyoxymethylene) body, NBR sealing
- Operating Pressure: 0-1.0 MPa (145 psi)
- Temperature Range: -20℃ to 60℃ (continuous use)
- Seal Type: Double-layer O-ring structure
- Surface Finish: Electrolytic polishing (Ra ≤0.8μm)
- Compliance: RoHS, REACH compliant
- Weight: 15g ±0.5g
- Dimensions: 19mm(OD) × 28mm(L) × 19mm(ID collar)
- Port Sizes: Input/Output - M5 female thread
- Proof Pressure: 1.5 MPa (217 psi) for 3 mins
- Flow Rate: 120 NL/min at 0.5 MPa
A precision-machined pneumatic connector featuring anti-vibration thread design with 30% increased pull-out resistance compared to standard fittings. The chamfered entry (0.3mm radius) ensures smooth tube insertion, while the stainless steel tension spring maintains constant sealing force across thermal cycles.
- Modular pneumatic circuit assembly in factory automation
- Sensor air supply connections in semiconductor equipment
- Medical device pneumatic interfaces (non-sterile areas)
- Robotic end-effector tooling quick-connect systems
- Laboratory analytical instrument gas lines
Installation guide:
Apply 1.5-2 wraps of PTFE tape on male threads (do not over-tighten - max torque 0.8N·m).
For vibration-prone environments, use thread-locking adhesive on the first 2 threads.
Always perform 3 pressure cycles (0-0.6MPa) before full operation.
| Property | Property Value |
|---|---|
| sku | POC1002-S |
