Airtac PY Y-Type Tee Connector PY6
The AirTAC Airtac PY Y-Type Tee Connector PY6 is a genuine union y for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeUnion Y
- SeriesPY
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PY Y-Type Tee Connector PY6

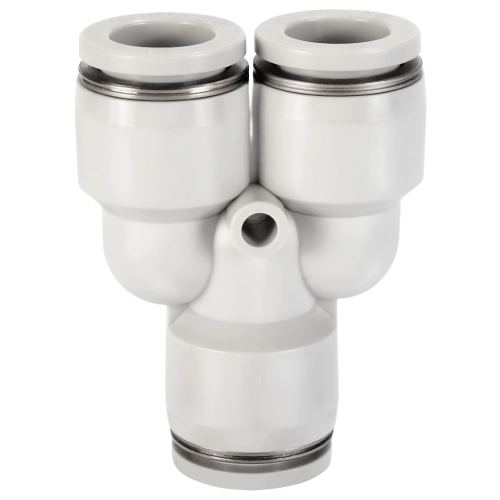

The AirTAC PY6 is a union Y, a three-port tube-to-tube fitting that splits one Dia 6 supply line into two Dia 6 branches with no threaded stud involved. Push each soft nylon or polyurethane tube into its port and the internal stainless spring gasket and chuck grip the outside wall; press the release ring to let go. The PBT body carries a POM release button and NBR O-rings, and the standard finish is grey - a D suffix swaps the body to black.
This is the resin one-touch profile, so it is rated 0-1.0 MPa working pressure, 1.5 MPa proof, -750 mmHg vacuum and -20 to +70 C. Because there is no thread, the port question disappears: all three legs take exactly 6 mm OD tubing, so a 1/4 inch tube will neither seat nor seal.
Airtac PY Y-Type Tee Connector PY6 Technical Specifications
| Model | Airtac PY Y-Type Tee Connector PY6 |
|---|---|
| Type | Union Y |
| Series | PY |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PY Y-Type Tee Connector PY6
| PY | Union Y. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PY Y-Type Tee Connector PY6 Is Used
Twin suction-cup feed
Splits one vacuum drop from an ejector into two Dia 6 lines feeding a pair of cups on a pick-and-place gantry handling flat sheet or carton blanks.
Dual cooling-air jets
Branches a 6 mm shop-air feed to two nozzles that blow chips clear of the cutting zone on a CNC machining centre between passes.
Two-line lab dosing
Routes clean dry air from a single bench regulator to two small pneumatic pumps mounted on a compact analytical instrument frame.
Is the Airtac PY Y-Type Tee Connector PY6 the Right Part?
PY4 steps down and PY8 steps up on this series - what changes is the bore feeding both branches, so a 4 mm Y suits slim pick heads while an 8 mm Y carries more volume to hungrier twin actuators. Match the Y to your circuit by tubing OD, not by thread. If you actually need a branch taken off a threaded port, that is the PYB male branch Y instead; the PY6 has no stud at all. And tube OD must match exactly - a Dia 6 port will not hold 6.35 mm (1/4 inch) tube.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PY Y-Type Tee Connector PY6 FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure to -750 mmHg (10 Torr), proof pressure 1.5 MPa, operating temperature -20 to +70 C. All three ports accept Dia 6 mm OD soft nylon or polyurethane tube.
Yes - it is rated to -750 mmHg (10 Torr) negative pressure, so it handles ejector and suction-cup vacuum as well as pressure. The NBR O-ring seals on the tube OD, so the tube must be exactly 6 mm and undamaged; use soft nylon or PU, because stiff hard-wall tube can back out under vacuum cycling.
