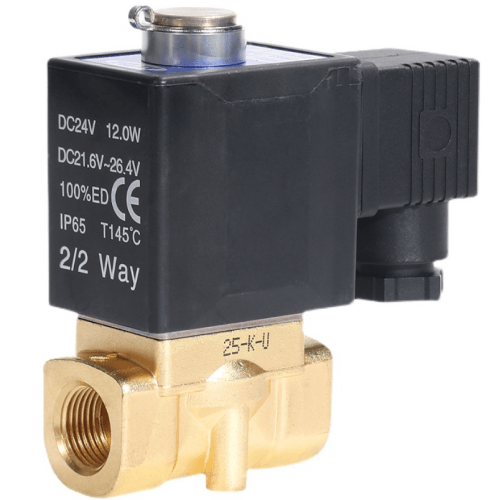

Airtac 2KWL Fluid Solenoid Valve 2KWL03006F
2. Wide pressure range adaptability, offering Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) models;
3. Compact design with minimized footprint, reduced weight, and tool-free modular assembly for easy maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (Fluorocarbon Rubber) seals compatible with diverse media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection, wiring options include Lead Wire or DIN Connector configurations.
**Category**: Fluid Solenoid Valve | **Brand**: AirTAC | **Series**: 2KWL
AirTAC 2KWL03006F Fluid Solenoid Valve Technical Details
- Model: 2KWL03006F
- Type: 2-way normally closed (direct-acting)
- Fluid compatibility: Water, light oils, air (non-corrosive media)
- Port size: G1/8 (BSPP thread)
- Max operating pressure: 1.0 MPa
- Voltage options: DC12V (±10%), DC24V (±10%)
- Power consumption: 10W (DC24V)
- Response time: ≤15ms (open/close)
- Viscosity range: ≤22 cSt
- Seal material: EPDM rubber (standard), optional FKM
- Temperature range: -5℃ to 80℃ (EPDM), -5℃ to 150℃ (FKM)
- Protection rating: IP67
- Weight: 320g ±5%
- Dimensions: 73mm(L) × 45mm(W) × 42mm(H)
- Port connection: Rc1/8 (ISO228-1 compliant)
- Hysteresis: ≤0.3MPa
High-pressure fluid control valve with zero differential pressure start capability, featuring brass body with electroless nickel plating for corrosion resistance. The optimized coil design reduces heat generation during continuous operation. Requires 50μm filtration upstream for particulate-sensitive applications.
- Coolant flow control in CNC machining centers
- Hydraulic system pilot stage activation
- Beverage dispensing systems
- Industrial dishwasher water management
- Solar thermal circulation control
- Analytical instrument reagent handling
Installation guidelines:
Maintain horizontal pipe orientation during installation.
Install vibration dampeners if system pulsation exceeds 0.3MPa RMS.
For liquid applications, orient coil upward to prevent air entrapment.
| Property | Property Value |
|---|---|
| sku | 2KWL03006F |
| Port Size | PT1/8 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC12V |
