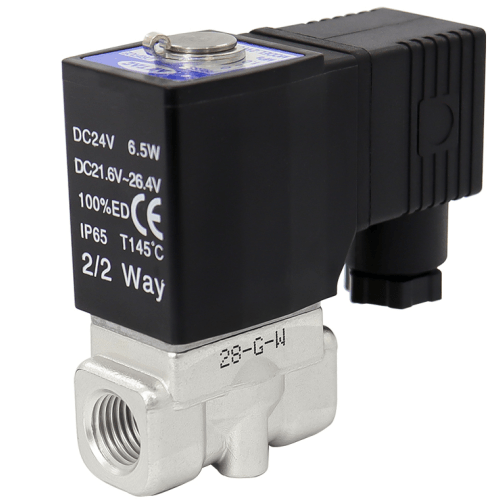

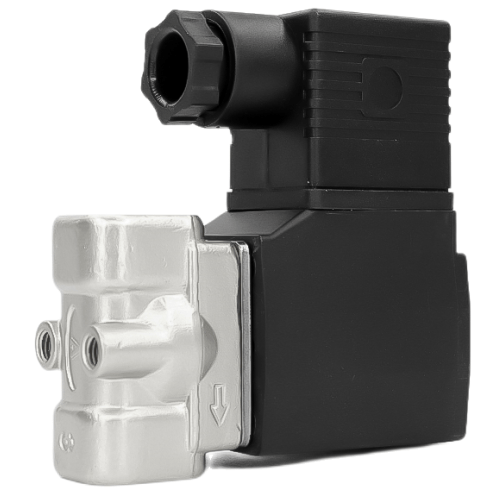

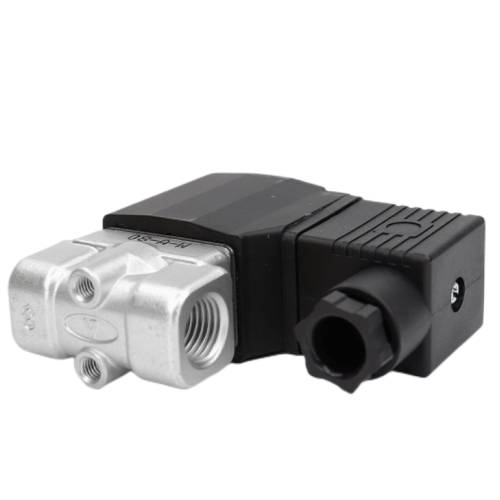

Airtac 2LH Fluid Solenoid Valve 2LH05010CI
2、Wide operating pressure range, available in High-Pressure (H) Type and Standard Type configurations;
3、Compact structure with minimized dimensions, lightweight design, and tool-free assembly for maintenance convenience;
4、SUS304 stainless steel valve body construction. Features H-class heat-resistant coil insulation and PTFE (Teflon®) seals, ensuring compatibility with multiple media types including high-temperature water and saturated steam applications;
5、IP65-rated coil protection with wiring options: Direct Lead Wire or DIN Connector configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2LH
AirTAC 2LH05010CI Fluid Solenoid Valve Technical Details
- Model: 2LH05010CI
- Type: 2-position, 2-way direct acting (fluid control)
- Port size: G1/2" (BSPP thread)
- Operating pressure: 0.02–1.0 MPa
- Fluid temperature range: -5℃ to 80℃
- Voltage options: DC12V/24V, AC110V/220V (±10% tolerance)
- Body material: Brass with nickel plating
- Seal material: EPDM (standard), optional FKM/Viton
- Response time: ≤30ms (energize), ≤20ms (de-energize)
- Flow coefficient (Cv): 2.4
- Protection rating: IP67 (coil assembly)
- Weight: 0.82kg ±3%
- Dimensions: 120mm(L) × 65mm(W) × 45mm(H)
- Port orientation: Horizontal through-port design
- Max viscosity: ≤50 cSt
High-flow fluid control valve with corrosion-resistant construction, featuring bubble-tight shutoff and low power consumption. The brass body with electroless nickel plating ensures compatibility with water, compressed air, and light oils. Includes manual override and surge protection circuitry.
- Industrial water treatment systems
- Chemical dosing equipment
- Beverage dispensing machines
- Coolant line control in CNC machinery
- Irrigation system automation
- Mobile hydraulic platforms
Installation guidelines:
Mount in vibration-free environment with flow direction matching body arrow.
Install 100-mesh filter upstream. For viscous fluids, preheat to reduce viscosity below 35 cSt.
Annual seal inspection recommended for continuous operation systems.
| Property | Property Value |
|---|---|
| sku | 2LH05010CI |
| Port Size | PT3/8 |
| Flow Aperture | <4mm> |
| Coil Voltage | AC 110V |
