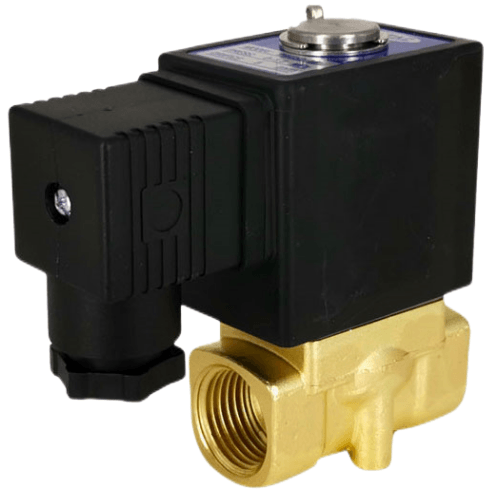

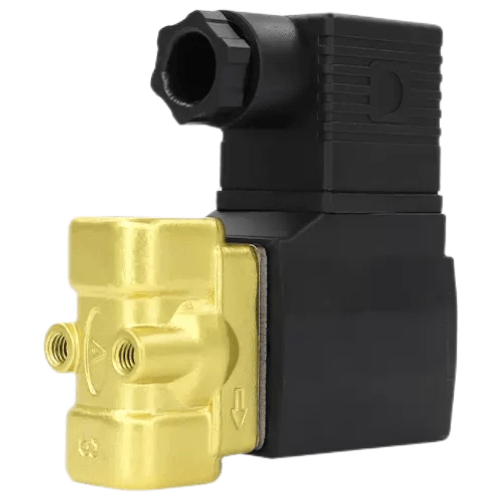

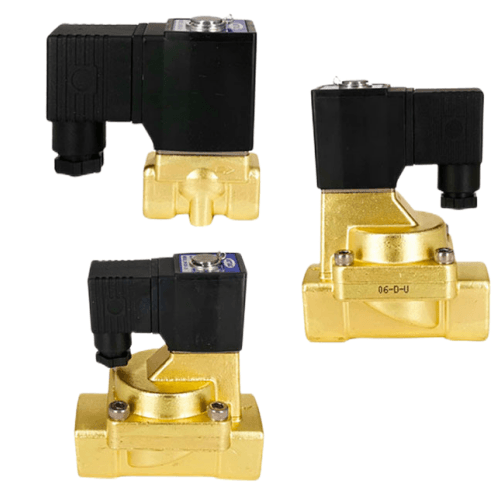

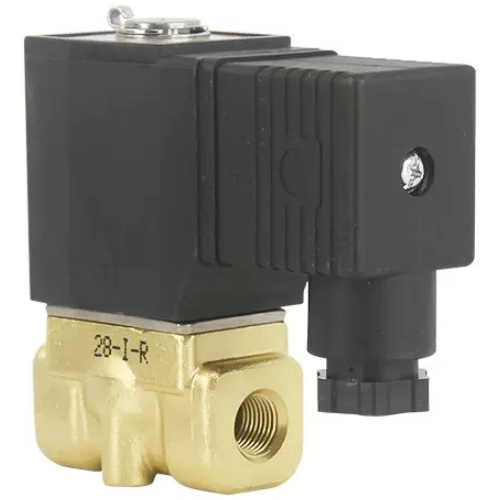

Airtac 2WT Extra High Flow Solenoid Valve 2WT03006CI
2. Wide operating pressure range with selectable configurations: Ultra-high pressure (X), High pressure (H), Standard, Large flow (L), and Extra-large flow (T);
3. Compact design, lightweight construction, and easy installation/maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (FKM) seals compatible with multiple media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection and wiring options: Direct lead-wire or DIN connector.
Category: Solenoid Valves, Brand: AirTAC, Series: 2WT
AirTAC 2WT Series High Flow Solenoid Valve 2WT03006CI Technical Details
- Model: 2WT03006CI
- Type: 5/3-way double solenoid operated (center exhaust)
- Port size: G3/8 (BSPP thread standard)
- Flow capacity: 2300 L/min (Cv=4.2) @ 0.5MPa
- Operating pressure: 0.1–1.0 MPa
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Response time: ≤30ms (excitation), ≤50ms (de-excitation)
- Weight: 1.45 kg ±3%
- Dimensions: 152mm(L) × 55mm(W) × 65mm(H)
- Seal material: Fluorinated rubber (FKM) standard (NBR optional)
- Temperature range: -10℃ to 80℃ (with FKM seals)
- Protection rating: IP67 (dust tight & protected against temporary immersion)
- Port alignment: ISO 5599-1 standard interface
- Coil insulation class: Class F (155℃)
- Service life: ≥10 million cycles (under rated conditions)
Engineered for industrial systems demanding extreme flow rates, the 2WT03006CI features an optimized flow path design achieving 30% higher throughput than standard valves. The hardened stainless steel plunger and reinforced coil structure ensure reliable operation in high-vibration environments. Compatible with ISO VG32 hydraulic oil (optional) when equipped with oil-resistant seals.
- High-speed paper converting machinery
- Plastic injection molding machine hydraulics
- Automotive tire curing press systems
- Steel mill pneumatic conveying controls
- Large-scale HVAC damper actuators
Installation guidelines:
Always install downstream filter (5μm recommended). For horizontal mounting,
use support brackets when valve weight exceeds 1kg. Allow 20mm clearance
above valve for manual override access. Pipe connections must be torque-limited
to 25-30 N·m to prevent body deformation.
Critical note:
Requires minimum 1.5mm² wire gauge for power connections.
Do NOT use PWM voltage control below 90% duty cycle.
Cycle frequency must remain under 5Hz for continuous operation.
