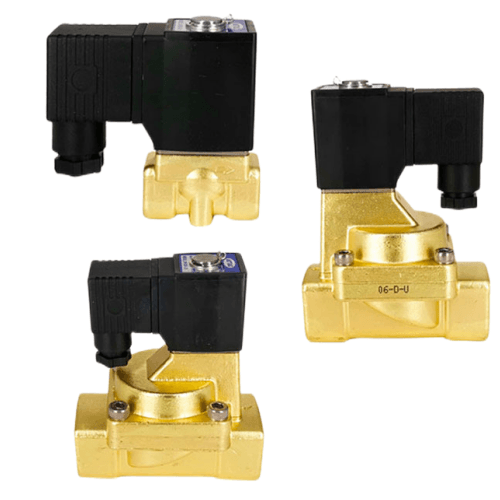

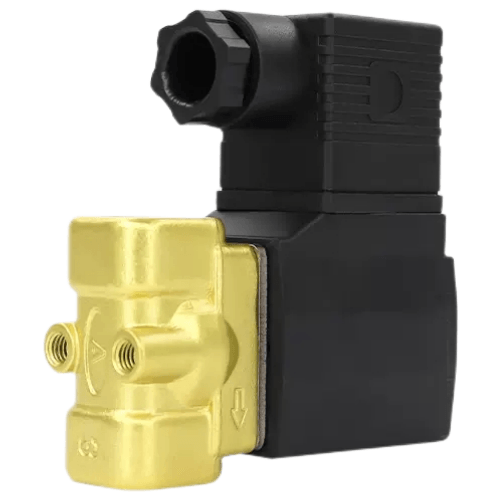

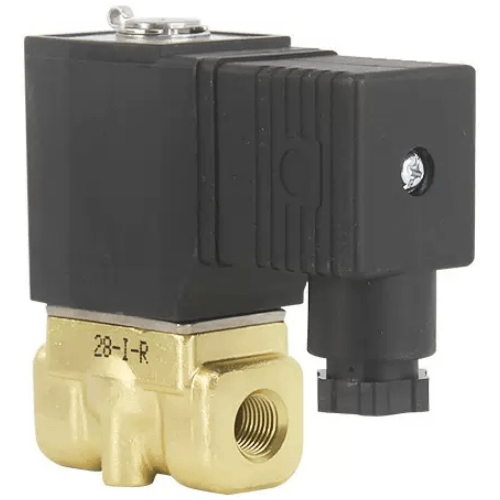

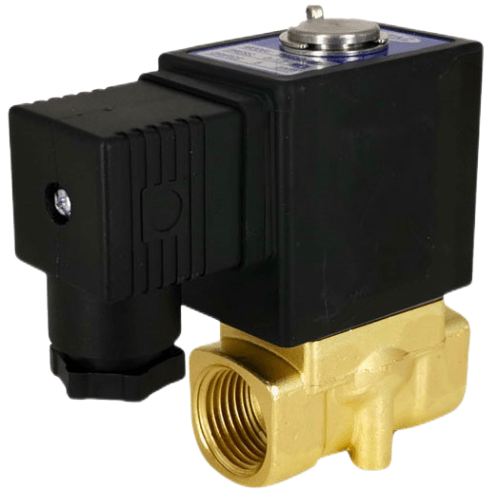

Airtac 2WT Extra High Flow Solenoid Valve 2WT05015F
2. Wide operating pressure range with selectable configurations: Ultra-high pressure (X), High pressure (H), Standard, Large flow (L), and Extra-large flow (T);
3. Compact design, lightweight construction, and easy installation/maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (FKM) seals compatible with multiple media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection and wiring options: Direct lead-wire or DIN connector.
Category: Solenoid Valves, Brand: AirTAC, Series: 2WT
AirTAC 2WT05015F High Flow Solenoid Valve Technical Details
- Model: 2WT05015F
- Type: 5/2-way direct acting (monostable)
- Port size: G1/2 (ISO228/1 standard)
- Operating pressure: 0.1–1.0 MPa
- Voltage options: DC12V, DC24V, AC110V 50/60Hz, AC220V 50/60Hz
- Power consumption: 2.5W (DC) / 4.5VA (AC)
- Weight: 1.3 kg (with connector)
- Dimensions: 125mm(L) × 54mm(W) × 82mm(H)
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: Heat-resistant NBR (+5℃ to 80℃)
- Flow capacity: Cv=2.2 (Kv=2.5) at 0.5MPa
- Response time: ≤25ms (open), ≤35ms (close)
- Protection rating: IP67 (with DIN connector)
- Port thread depth: 12mm (minimum engagement)
- Coil insulation class: Class F (155℃)
Industrial-grade high-flow solenoid valve featuring zero-pressure differential operation capability and bubble-tight sealing. The optimized flow path design reduces pressure drop by 18% compared to standard models. Equipped with manual override and position indicator for maintenance operations. Compatible with ISO 15407-1 standards.
- High-speed packaging machinery cylinder control
- Plastic injection molding machine ejectors
- Automated assembly line clamping devices
- Foundry equipment pneumatic circuits
- Bulk material handling systems
- Semiconductor manufacturing actuators
Installation guidelines:
Mount with vibration-damping brackets in high-cycle applications (>5Hz).
Use PTFE tape on port threads with 1.5-2 wraps maximum.
Maintain ambient temperature below 60℃ with 10cm clearance from heat sources.
- Effective area (S): 32mm²
- Standard flow rate: 750 L/min (ANR) at 0.5MPa
- Max permissible viscosity: 50mm²/s
- Leakage: ≤3 bubbles/min (ISO 5598-1 test)
| Property | Property Value |
|---|---|
| sku | 2WT05015F |
| Port Size | PT 1/2 |
| Flow Aperture | <10mm> |
| Coil Voltage | DC12V |
