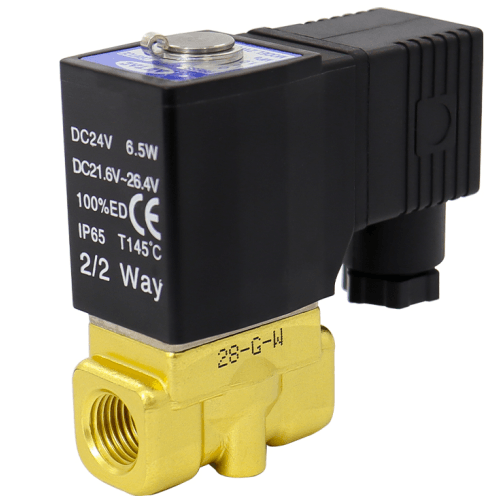

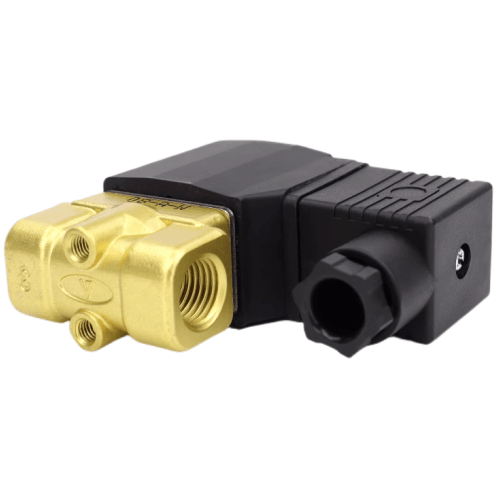

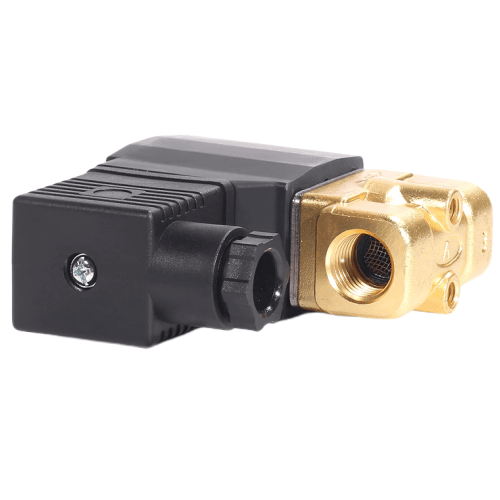

Airtac 2WX Fluid Solenoid Valve 2WX03006A
2. Wide pressure range adaptability with selectable variants: Ultra-high pressure (X), High pressure (H), Standard, High flow (L), and Extra-high flow (T);
3. Compact design with minimal footprint, lightweight construction, and simplified installation/maintenance;
4. Brass valve body with B-class thermal-rated coils. Standard FPMF (Fluorine Rubber) seals ensure multi-media compatibility. Custom seal materials available upon request – consult our technical department;
5. IP65-rated coil protection. Electrical connection options: Direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: Airtac | Series: 2WX
AirTAC 2WX03006A Fluid Solenoid Valve Technical Details
- Model: 2WX03006A
- Type: 5/2-way monostable (direct-acting)
- Port configuration: 5 ports (P, A, B, EA, EB) / 2 positions
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.15–1.0 MPa (21.7–145 PSI)
- Proof pressure: 1.5 MPa
- Voltage tolerance: ±10% of rated voltage
- Voltage options:
- DC: 12V/24V (2.5W)
- AC: 110V/220V (5.5VA)
- Response time: ≤15ms (energized), ≤20ms (de-energized)
- Flow coefficient (Cv): 1.2
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Temperature range: -20℃ to 80℃ (with 0℃ freeze protection recommended)
- Weight: 290g ±5g (including coil)
- Dimensions: 56mm(L) × 34mm(W) × 72mm(H)
- Mounting pattern: ISO 5599-1 standard footprint
- Protection rating: IP67 (dustproof and temporary immersion protection)
- Service life: ≥10 million cycles (under rated conditions)
High-flow directional control valve with manual override, featuring brass main body and stainless steel core tube for corrosion resistance. The dual-coil design allows for continuous duty operation without overheating. Includes LED status indicator and surge protection circuitry. Requires 50μm filtration with automatic drainage.
- Pneumatic cylinder sequencing in assembly lines
- Textile machinery shuttle control systems
- Plastic injection molding machine clamp control
- Automated material handling systems
- Semiconductor wafer handling robots
Maintenance protocol:
Lubricate spool monthly with ISO VG32 turbine oil (1-2 drops in EA/EB ports).
For horizontal mounting, install condensate separator upstream.
Minimum 15mm clearance required below valve for service access.
| Property | Property Value |
|---|---|
| sku | 2WX03006A |
| Port Size | PT1/8 |
| Flow Aperture | 1.5mm |
| Coil Voltage | AC220V |
