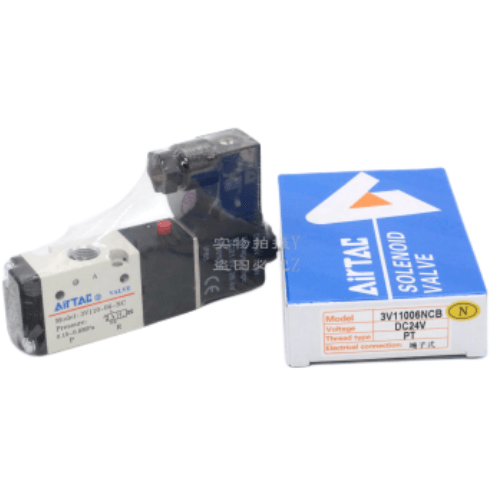

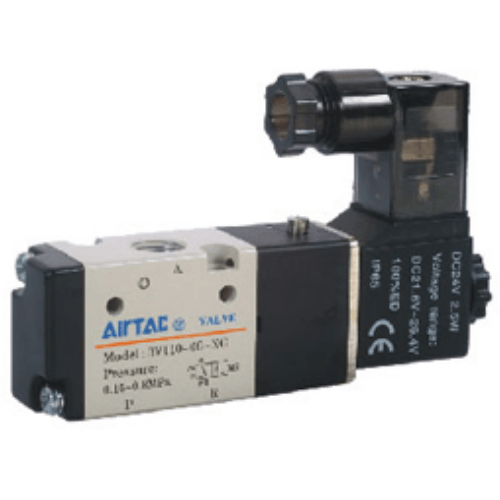

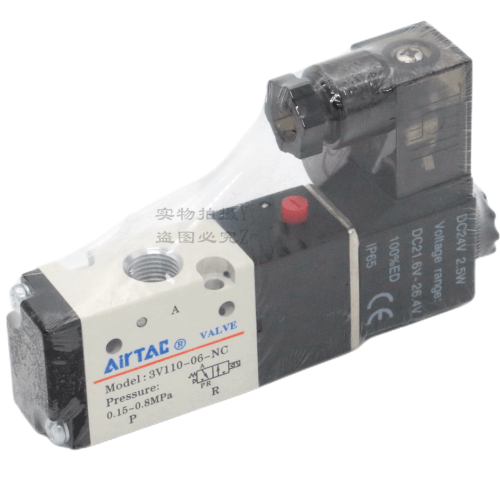

Airtac 3V100 Solenoid Valve 3V120M5FI
2. Spool-type structure ensures excellent sealing performance and rapid response characteristics;
3. Dual solenoid version features position memory function for status retention during power interruption;
4. Precision-machined inner bore with specialized surface treatment achieves low friction resistance, minimal actuation pressure requirement, and enhanced operational longevity;
5. Lubrication-free design eliminates maintenance requirements;
6. Integrated manual override facilitates installation commissioning and system diagnostics;
7. Multiple standardized voltage specifications available for global compatibility;
8. Manifold mounting capability enables compact valve grouping solutions for space-constrained applications. Category: Solenoid Valves | Brand: AirTAC | Series: 3V100
AirTAC 3V120M5FI Solenoid Valve Technical Specifications
- Model: 3V120M5FI
- Series: 3V100 compact general-purpose valves
- Valve type: 3/2-way (3 ports, 2 positions)
- Operation type: Direct-acting with manual override
- Port thread: M5×0.8 (ISO standard metric thread)
- Port configuration: Inlet (P), Outlet (A), Exhaust (R)
- Effective area: 12mm² (flow capacity equivalent to 1/8" port)
- Operating pressure: 0.05–0.8 MPa (7-116 PSI)
- Voltage variants:
- DC: 12V, 24V
- AC: 110V 50/60Hz, 220V 50/60Hz
- Coil class: F (155℃ insulation)
- Power consumption: 1.6W (DC), 2.8VA (AC)
- Response time: ≤15ms (at 0.5MPa)
- Flow rate: 120NL/min (ANR, ΔP=0.2MPa)
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Ambient temperature: -5℃ to 80℃ (with no freezing condensation)
- Fluid temperature: 0-60℃
- Protection class: IP67 (dust tight & temporary immersion protected)
- Housing material: Glass-filled polyamide (PA66-GF25)
- Weight: 180g ±5% (excluding connectors)
- Dimensions: 42mm(L) × 34mm(W) × 54mm(H) (body only)
- Mounting: Direct panel mount or DIN rail compatible (with adapter)
Ultra-compact 3/2-way solenoid valve optimized for space-constrained pneumatic systems. Features corrosion-resistant construction with metal-free fluid path for cleanroom compatibility. The integrated LED status indicator (select models) and splash-proof coil design make it suitable for harsh environments. Requires 5μm filtered air with lubrication (ISO 8573-1:2010 class 4.4.3).
- Robotic end-effector tooling (grippers, suction cups)
- Semiconductor wafer handling equipment
- Mobile hydraulic control blocks in AGVs
- Textile machinery pneumatic sequencing
- Dental chair pneumatic adjustments
- Beverage dispensing systems
Installation guidelines:
Maintain minimum 15mm clearance around coil for heat dissipation.
Use flexible tubing to prevent mechanical stress. Cycle rate should not exceed 5Hz continuously.
For vertical mounting, position exhaust port downward.
| Property | Property Value |
|---|---|
| sku | 3V120M5FI |
| Position | 3-Port 2-Position |
| Port Size | M5 |
| Standard Voltage | DC12V |
