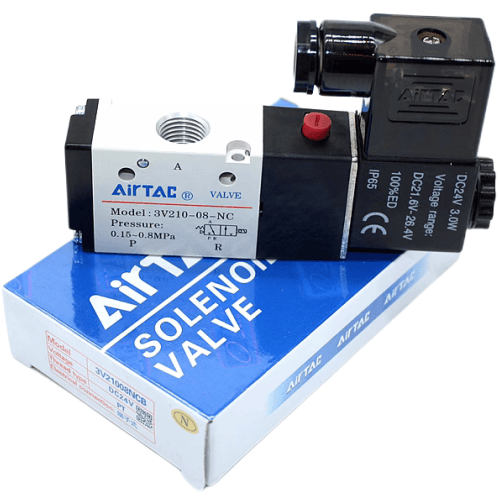

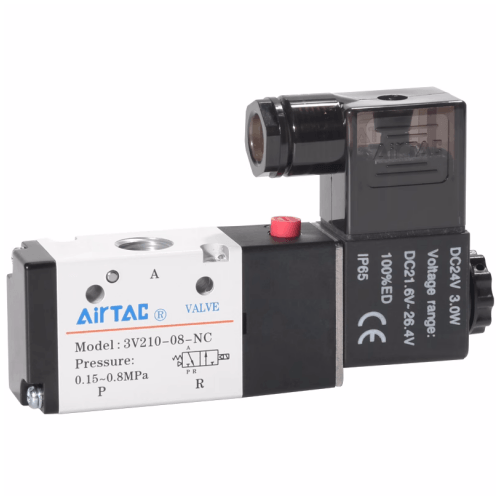

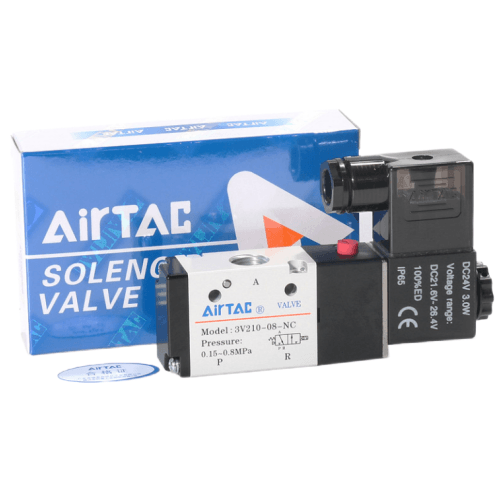

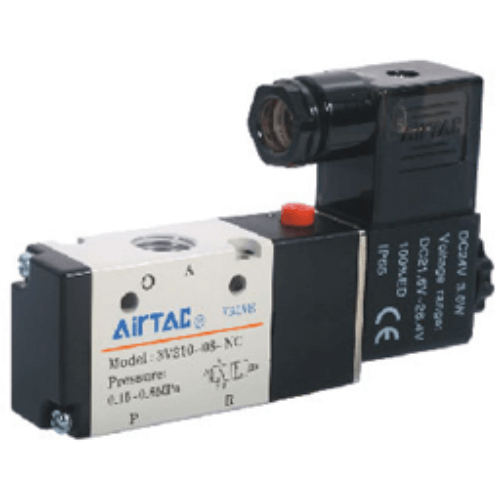

Airtac 3V200 Solenoid Valve 3V210-08NC-A
The AirTAC Airtac 3V200 Solenoid Valve 3V210-08NC-A is a genuine 3-port 2-position (3/2) solenoid valve with 1/4 in ports. A 3/2 valve either feeds its outlet or vents it to exhaust, so it suits single-acting cylinders, air blow, clamping, vacuum switching and pilot duty. We stock this code and confirm its published figures from the datasheet on request.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally closed
- Port size1/4 in
- Coil voltageAC220V
- Electrical entryDIN plug (DIN socket type)
- Series3V210
About the Airtac 3V200 Solenoid Valve 3V210-08NC-A
The 3V210-08NC-A switches one air line with three ports and two positions: feed the outlet, or vent it. Normally closed, the outlet sits at exhaust until the AC220V coil is energised. The 1/4in PT port is the step up from 1/8in on this body, leaving room for a larger spring-return cylinder or a higher-demand blow line, while the wiring footprint stays the same: a DIN plug on the coil.
It is a genuine AirTAC part, not a parallel copy. Across the 3V2 range you can also order the normally open state, AC110V, AC24V, DC24V or DC12V coils, flying leads instead of the DIN plug, and 3V200M manifold bases for multi-valve stations. Any datasheet figure you need - pressure, flow, coil power - comes from us on request.
Airtac 3V200 Solenoid Valve 3V210-08NC-A Technical Specifications
| Model | Airtac 3V200 Solenoid Valve 3V210-08NC-A |
|---|---|
| Series | 3V210 |
| Valve type | 3/2-way (3-port, 2-position) |
| Initial state | Normally closed |
| Port size | 1/4 in |
| Thread | PT |
| Coil voltage | AC220V |
|---|---|
| Electrical entry | DIN plug (DIN socket type) |
| Coil power | Confirm from the datasheet — ask us |
| Operating pressure | Confirm from the datasheet — ask us |
| Flow coefficient | Confirm from the datasheet — ask us |
| Temperature | Confirm from the datasheet — ask us |
| Protection | Confirm from the datasheet — ask us |
Model Code: Airtac 3V200 Solenoid Valve 3V210-08NC-A
| 3V210 | Body. |
|---|---|
| 1/4 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NC | Normally closed: no air at the outlet until the coil is energised. |
| AC220V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| — | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the Airtac 3V200 Solenoid Valve 3V210-08NC-A Is Used
Welding jig swing clamps
Swing clamps on a welding jig for automotive brackets: the 1/4in port feeds the clamp cylinder through the weld cycle, then vents it so the jig opens for loading the next part.
Pilot signal duty
Piloting a larger directional valve on a machine bed - this valve sends the small control signal that shifts the main valve, energised from the panel through its DIN plug.
Bench blow-off station
A bench blow-off station clearing swarf from machined housings: energise for the air jet, de-energise and the line dead-ends vented at the valve rather than at the nozzle.
Is the Airtac 3V200 Solenoid Valve 3V210-08NC-A the Right Part?
The 1/4in port is the practical choice when the 1/8in bodies feel small for your actuator; M5 and 3/8in sit at either end of the range. NC returns the outlet to vent on power loss, which is what most clamping and holding circuits want from a spring-return cylinder. Coil voltage is fixed at AC220V at the factory - match it to your panel supply, because coils cannot be rewired. PT thread is standard here; G and NPT are catalogue options to order.
Flow figures for this family are not in our published set, so let us size the 3V210-08NC-A against your cylinder before you commit. Buyers who need figures in hand today should look at the documented 3V2 (1/8in and 1/4in) and 3V3 (1/4in) series, where flow and coil power are printed. For double-acting cylinders, move to the 5-port AirTAC 4V series.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
Airtac 3V200 Solenoid Valve 3V210-08NC-A FAQ
Yes, on request. We confirm pressure, flow and coil power from the AirTAC datasheet against your RFQ. Where you want published figures immediately, the 3V2 (1/8in and 1/4in) and 3V3 (1/4in) bodies are the documented series with those numbers printed.
Pick normally closed when losing power should vent the actuator - the fail-safe choice for clamps and holders. Pick normally open when the outlet must stay fed through a power cut. Both states exist in this family; a 3/2 valve never suits a double-acting cylinder, which calls for a 4V 5-port valve.
