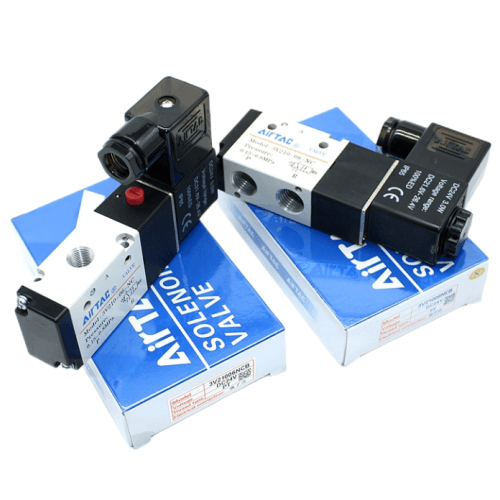

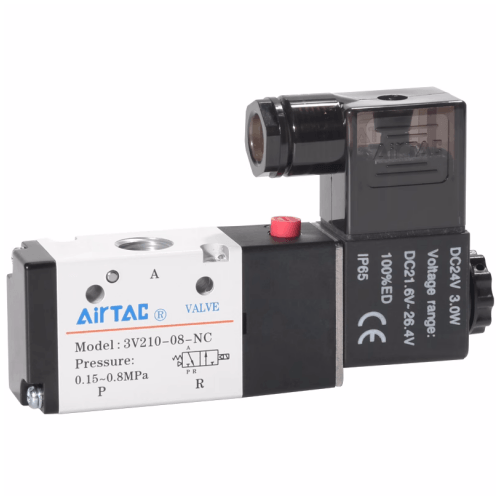

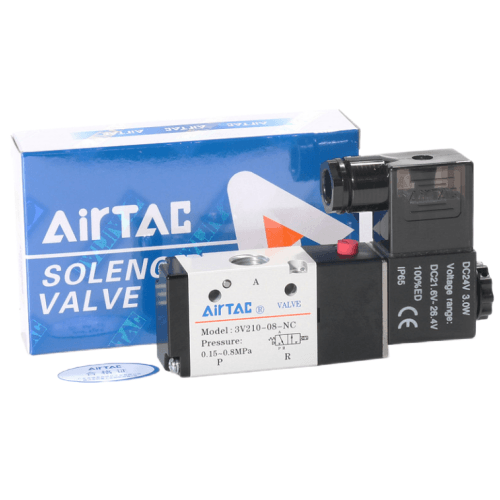

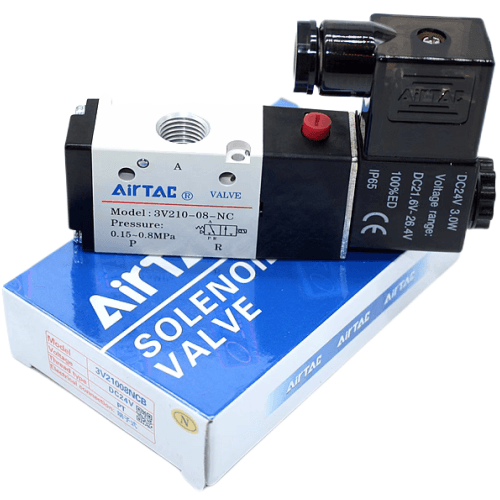

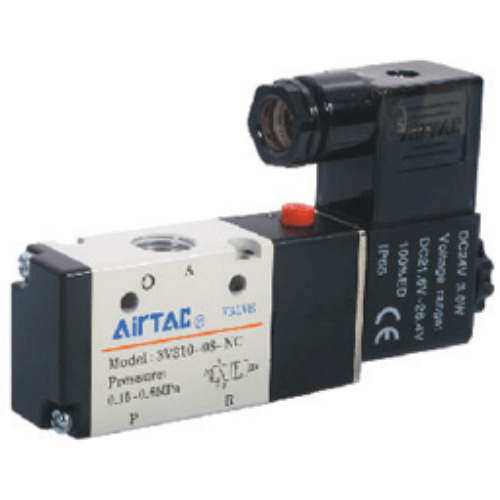

AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE)
The AirTAC AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE) is a genuine 3-port 2-position (3/2) solenoid valve with 1/8 in ports. A 3/2 valve either feeds its outlet or vents it to exhaust, so it suits single-acting cylinders, air blow, clamping, vacuum switching and pilot duty. We stock this code and confirm its published figures from the datasheet on request.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally closed
- Port size1/8 in
- Coil voltageAC24V
- Electrical entryDIN plug (DIN socket type)
- Series3V210
About the AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE)
Inside the 3/2 function, this valve keeps things simple: a supply port, an outlet and an exhaust, with the AC24V coil switching the outlet between feed and vent. Being normally closed, the 1/8in outlet stays open to exhaust until the coil pulls in. The 24V coil is a common choice where operators work at the machine, because the control side runs at a low voltage.
You are buying a genuine AirTAC 3V210 part, not a lookalike. The family around it covers normally open as well as normally closed, five coil voltages from AC220V down to DC12V, DIN-plug or flying-lead coils, and 3V-F bases that mount several valves on one shared supply. Datasheet figures for pressure, flow and coil power are on file - ask in your RFQ and we will attach the confirmed sheet.
AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE) Technical Specifications
| Model | AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE) |
|---|---|
| Series | 3V210 |
| Valve type | 3/2-way (3-port, 2-position) |
| Initial state | Normally closed |
| Port size | 1/8 in |
| Thread | PT |
| Coil voltage | AC24V |
|---|---|
| Electrical entry | DIN plug (DIN socket type) |
| Coil power | Confirm from the datasheet — ask us |
| Operating pressure | Confirm from the datasheet — ask us |
| Flow coefficient | Confirm from the datasheet — ask us |
| Temperature | Confirm from the datasheet — ask us |
| Protection | Confirm from the datasheet — ask us |
Model Code: AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE)
| 3V210 | Body. |
|---|---|
| 1/8 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NC | Normally closed: no air at the outlet until the coil is energised. |
| AC24V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| — | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE) Is Used
Guarded press interlock
Where operators stand at the controls, an AC24V coil keeps the switching circuit at a low control voltage while the valve feeds a spring-return clamping ram.
Assembly-bench clamp fixture
Clamp a bracket for fastening, then release it by cutting power - the NC function vents the clamp line between cycles.
Pilot stage for a larger valve
Use the 1/8in outlet to send and vent a pilot signal to a bigger air-operated valve on a process line.
Is the AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE) the Right Part?
Decide the rest state first: this valve is normally closed (outlet vents until energised); a normally open version feeds at rest instead. The 1/8in PT port is the small step of the range - for bigger single-acting actuators move to 1/4in or 3/8in. Your control supply must be AC24V to match this coil; voltage is fixed at order time, not changed in the panel. Wiring here is a DIN plug that pushes onto the coil's socket - flying leads are the alternative if you prefer pre-wired tails. For a bank of valves, look at the 3V-F manifold bases. Two honest pointers: published flow and coil-power data for this family is not in our hands, so ask us to size it against your actuator by RFQ, or choose the documented 3V2 (1/8in, 1/4in) / 3V3 (1/4in) bodies where those figures are published. A double-acting cylinder is out of scope for 3/2 - that is the AirTAC 4V five-port series.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE) FAQ
Not from this page - we do not publish figures we cannot verify for this family. Ask through an RFQ and we will read them out of the datasheet for you. For immediate published data, the AirTAC 3V2 in 1/8in and 1/4in and the 3V3 in 1/4in carry documented flow and coil-power figures.
No. A 3/2 valve has one outlet: it either feeds it or vents it, which suits single-acting spring-return cylinders, blow-off and piloting. A double-acting cylinder needs pressurised air on both sides alternately, which takes a 5-port valve - the AirTAC 4V series is built for that.
Authorized Export Seller
Genuine AirTAC parts produced by the AirTAC factory.
1-Year Warranty
Covers non-human-caused product damage.
Fast Dispatch
Standard models usually ship in 3-4 days.
Fast Reply
Most inquiries answered within 7-8 hours.
Related AirTAC 3V Valves
Request a Quote for AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCE)
Send us the quantity, coil voltage and destination. We confirm price, stock and lead time — usually within 7-8 hours.
