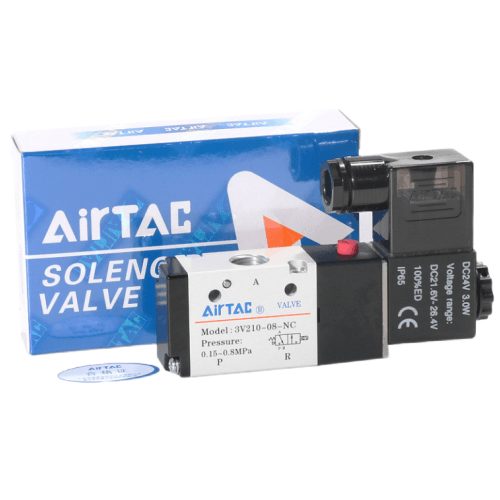

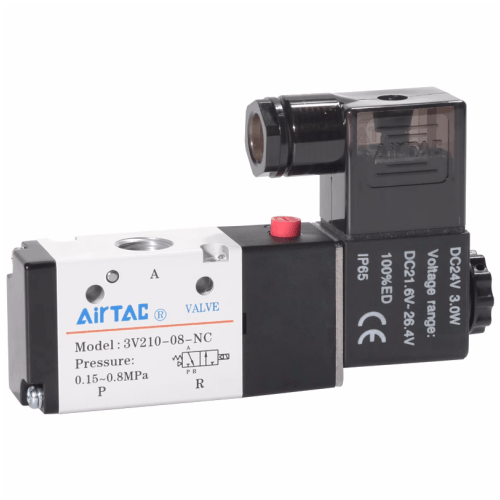

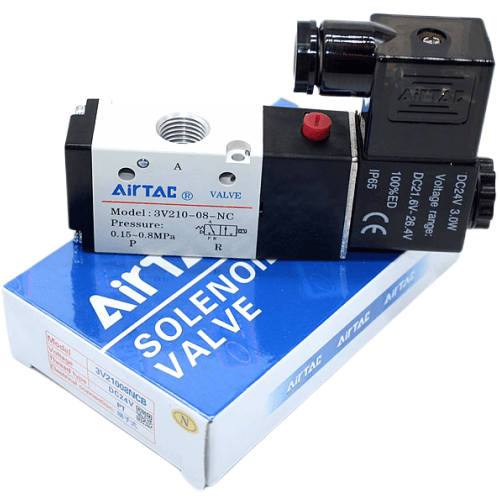

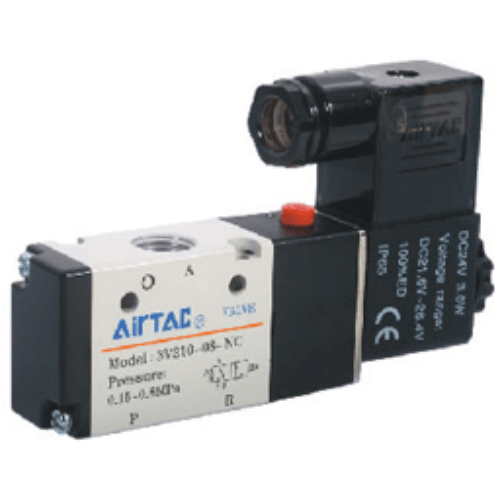

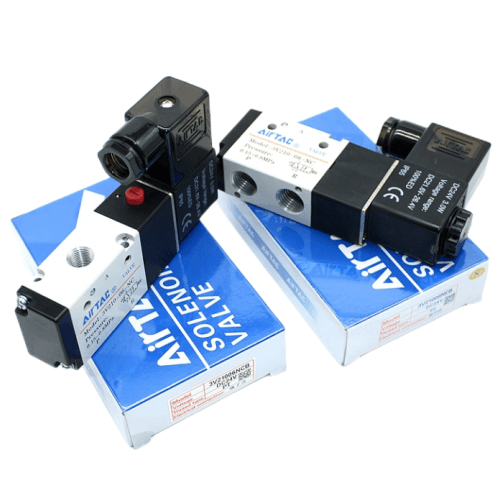

Airtac 3V200 Solenoid Valve 3V21006NOCI
2. Spool-type structure with excellent sealing properties and high responsiveness;
3. Dual-coil design features memory function (position retention upon power loss);
4. Precision-engineered internal bore reduces friction resistance, enables low activation pressure (0.15MPa) and ensures extended service life;
5. Lubrication-free operation;
6. Integrated manual override for simplified commissioning and maintenance;
7. Multiple standardized voltage options available;
8. Modular valve system compatibility with manifold bases for space-optimized installations.
Category: Solenoid Valves | Brand: AirTAC | Series: 3V200
AirTAC 3V200 Series Solenoid Valve 3V21006NOCI Technical Details
- Full model designation: 3V210-06NOC1 (commonly labeled 3V21006NOCI)
- Valve type: 3-way, 2-position normally closed (direct-acting)
- Port thread: PT1/4 (G1/4 optional)
- Effective bore diameter: 2.5mm
- Pressure range: 0.05–1.0 MPa (7-145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Weight: 310g ±5% (with coil)
- Dimensions: 54mm(L) × 40mm(W) × 72mm(H) (excluding connectors)
- Valve body material: Anodized aluminum alloy (ADC12)
- Seal compound: High-grade HNBR (Hydrogenated Nitrile) for oil/fuel resistance
- Ambient temperature: -10℃ to 60℃ (non-freezing)
- Response time: ≤15ms (energized), ≤20ms (de-energized)
- Power consumption: 2.2W (DC), 3.5VA (AC)
- Protection standard: IP67 (dustproof/water immersion resistant)
- Cycle life: ≥10 million operations (under rated conditions)
High-flow compact solenoid valve optimized for industrial automation systems. Features dual-chamber design for rapid response and zero-pressure start capability. The hardened stainless steel plunger and military-grade epoxy-coated coil ensure reliability in high-vibration environments. Compatible with compressed air, inert gases, and light hydraulic fluids (ISO VG32 or lower).
- CNC machine tool coolant control systems
- Automotive assembly line clamping mechanisms
- Food processing pneumatic actuators (FDA-compliant versions available)
- Battery production line vacuum handling
- Textile machinery air-jet looms
Operational guidelines:
Install upstream filter regulator (5μm minimum). For horizontal mounting,
use anti-vibration brackets (AV-200 series recommended). Allow 15mm
clearance on lateral sides for heat dissipation. Perform monthly
manual cycling during standby periods exceeding 30 days.
| Property | Property Value |
|---|---|
| sku | 3V21006NOCI |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
| Standard Voltage | AC 110V |
