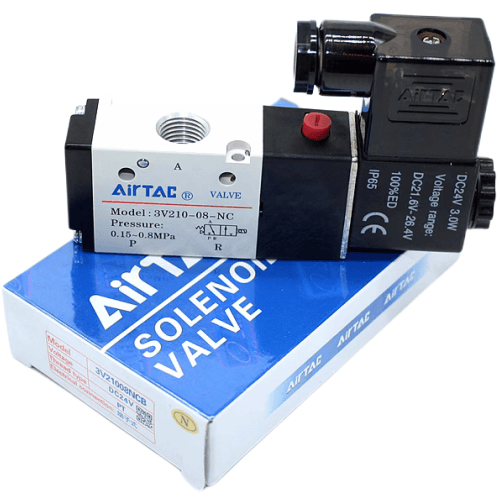

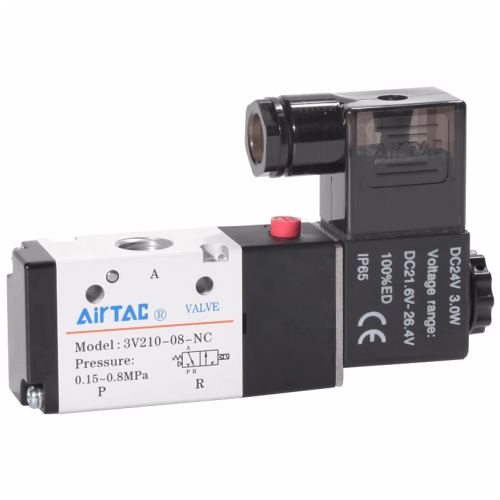

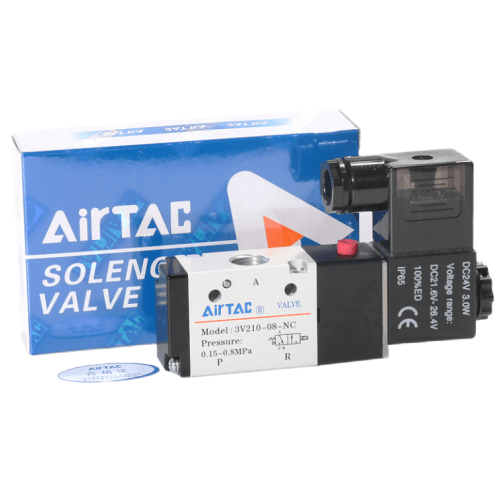

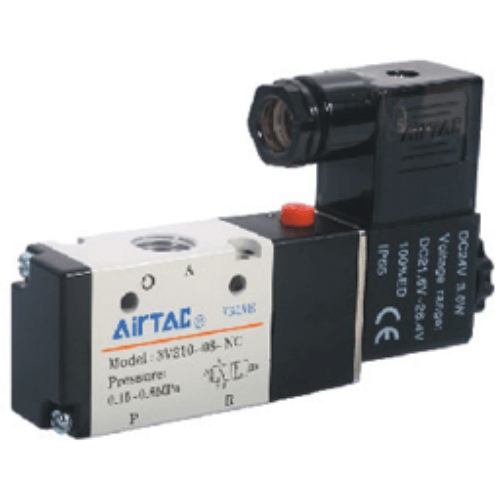

Airtac 3V200 Solenoid Valve 3V21008NCAI
2. Spool-type structure with excellent sealing properties and high responsiveness;
3. Dual-coil design features memory function (position retention upon power loss);
4. Precision-engineered internal bore reduces friction resistance, enables low activation pressure (0.15MPa) and ensures extended service life;
5. Lubrication-free operation;
6. Integrated manual override for simplified commissioning and maintenance;
7. Multiple standardized voltage options available;
8. Modular valve system compatibility with manifold bases for space-optimized installations.
Category: Solenoid Valves | Brand: AirTAC | Series: 3V200
AirTAC 3V210-08N-C-A Solenoid Valve Specifications
- Full model code: 3V21008NCAI (factory designation)
- Valve type: 3/2-way normally closed (pressure-balanced poppet design)
- Port size: PT1/4 (G1/8 optional with adapter)
- Effective bore: Ø2.5mm (flow optimized)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃ thermal rating)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow capacity: 650 l/min (Cv=0.53 at 0.5MPa)
- Weight: 310g ±5% (including coil and accessories)
- Dimensions: 65mm(L) × 45mm(W) × 80mm(H) (excluding pneumatic ports)
- Seal material: High-grade NBR (nitrile butadiene rubber)
- Ambient temperature: -20℃ to +70℃ (non-freezing conditions)
- Power consumption: 1.6W (DC models), 2.3VA (AC models)
- Protection rating: IP67 (dust/water resistant)
- Service life: ≥10 million cycles (under rated conditions)
Industrial-grade solenoid valve featuring low-hysteresis spool mechanics and copper-free aluminum alloy construction. The 3V21008NCAI model incorporates surge-protected coils and hardened stainless steel plungers, delivering precise air flow control in high-cycle applications. Requires 5μm filtered compressed air with max 5ppm oil content.
- High-speed bottle capping machines in beverage production
- Plastic injection molding machine ejector systems
- Automotive wheel assembly pneumatic clamping
- Industrial laser cutting head gas control
- PCB handling robotic end-effector controls
Maintenance protocol:
Perform manual override testing monthly. Replace air filters every 2,000 operating hours.
Use thread sealant (PTFE-free) during installation to prevent air leakage.
| Property | Property Value |
|---|---|
| sku | 3V21008NCAI |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
| Standard Voltage | AC220V |
