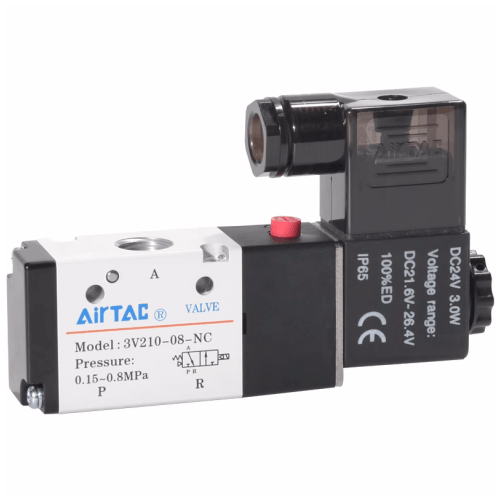

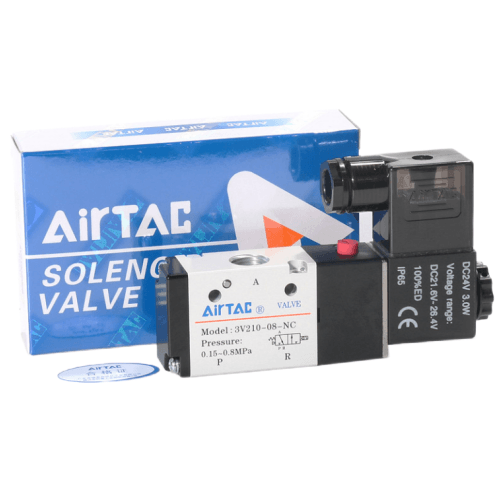

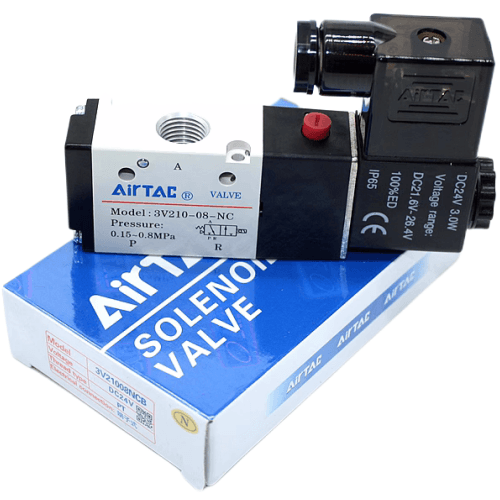

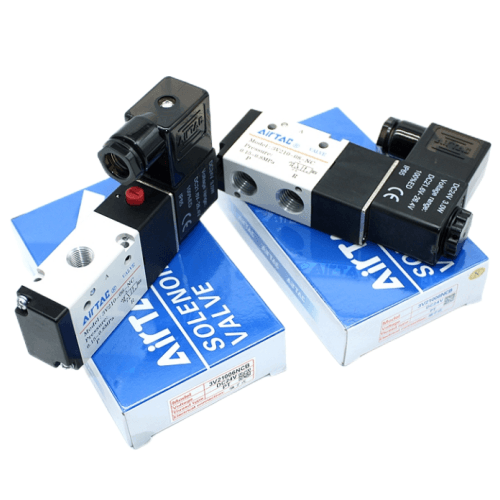

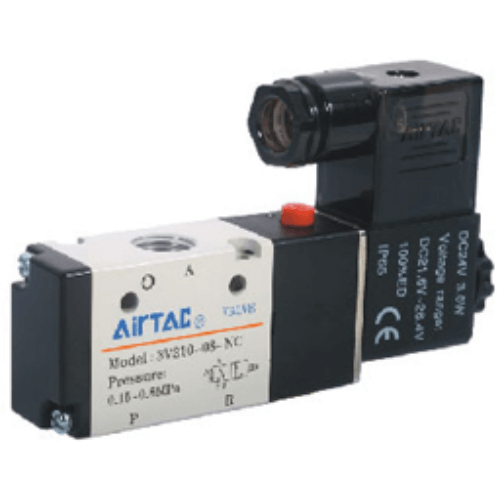

AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB)
The AirTAC AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB) is a genuine 3-port 2-position (3/2) solenoid valve with 1/4 in ports. A 3/2 valve either feeds its outlet or vents it to exhaust, so it suits single-acting cylinders, air blow, clamping, vacuum switching and pilot duty. We stock this code and confirm its published figures from the datasheet on request.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally closed
- Port size1/4 in
- Coil voltageDC24V
- Electrical entryDIN plug (DIN socket type)
- Series3V210
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB)
On a machine controlled from a low-voltage panel, the coil voltage decides the wiring, and this 3V21008NCB answers it: a DC24V coil on a DIN plug. The valve itself is a normally closed 3/2-way unit with a 1/4in PT port - no air at the outlet until the coil energises, and the outlet open to exhaust when it drops.
Genuine AirTAC manufacture, and a family that covers the rest of the map: NC or NO states, AC220V, DC24V, AC110V, AC24V and DC12V coils, flying-lead or DIN entry, plus 3V-F manifold bases. We do not publish pressure, flow or coil power for this kit; those figures reach you datasheet-confirmed when you place an RFQ.
AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB) Technical Specifications
| Model | AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB) |
|---|---|
| Series | 3V210 |
| Valve type | 3/2-way (3-port, 2-position) |
| Initial state | Normally closed |
| Port size | 1/4 in |
| Thread | PT |
| Coil voltage | DC24V |
|---|---|
| Electrical entry | DIN plug (DIN socket type) |
| Coil power | Confirm from the datasheet — ask us |
| Operating pressure | Confirm from the datasheet — ask us |
| Flow coefficient | Confirm from the datasheet — ask us |
| Temperature | Confirm from the datasheet — ask us |
| Protection | Confirm from the datasheet — ask us |
Model Code: AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB)
| 3V210 | Body. |
|---|---|
| 1/4 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NC | Normally closed: no air at the outlet until the coil is energised. |
| DC24V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| — | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB) Is Used
PLC-controlled assembly cell
Drive the coil from a 24V PLC output - energise to feed a single-acting clamp, de-energise to vent it - without intermediate relay hardware in the circuit.
Clamp-before-fasten station
Air up a spring-return clamp ahead of a bolt-driving head; cut the 24V signal and the valve exhausts, letting the clamp spring clear of the tool.
Battery-powered service rig
On a site rig fed from a 24V battery and DC/DC supply, the DC24V coil runs the fixture cylinder with no inverter anywhere in the circuit.
Is the AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB) the Right Part?
The decision that matters most here is electrical: DC24V matches a PLC-side supply, and the DIN plug entry gives a socketed connection at the valve - flying leads are available if you want hard-wired coils instead. Functionally the valve is NC, so de-energising it vents the outlet, the behaviour you want when a clamp must release on power loss. The 1/4in PT port suits a larger single-acting cylinder than the 1/8in or M5 steps, and a 3V-F manifold base lets you bank several valves on one air feed and one wiring run. We have no flow or coil-power numbers for this kit, so we will confirm them from the datasheet on request; if published figures are needed before you commit, the AirTAC 3V2 and 3V3 bodies carry them. Double-acting actuation belongs to the 5-port 4V series.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
AirTAC 3V210-08 Solenoid Valve, 3V200 Series (3V21008NCB) FAQ
Yes - on request. Send the RFQ and we confirm the pressure range, flow and coil draw from the AirTAC datasheet rather than estimating here. If your project needs documented figures up front, the AirTAC 3V2 and 3V3 3/2 bodies are the ones with published data.
The B suffix fixes the coil at DC24V, which matches PLC and low-voltage control panels. A coil cannot be converted by rewiring - each voltage (AC220V, DC24V, AC110V, AC24V, DC12V) is a separate order code in this family, so pick the one that matches your supply.
