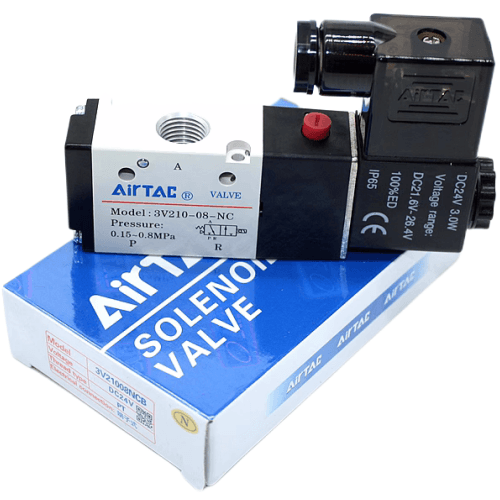

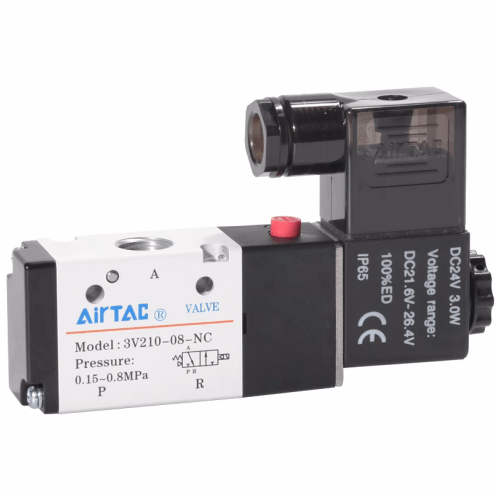

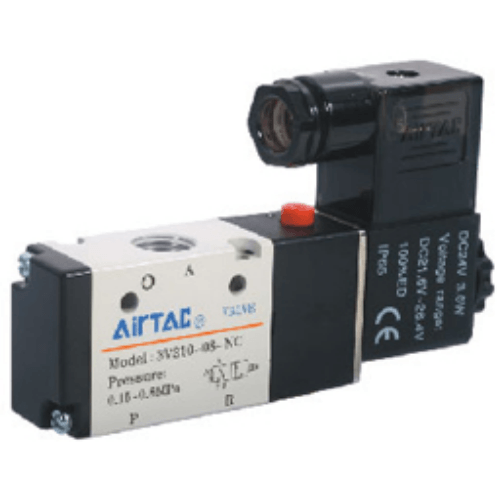

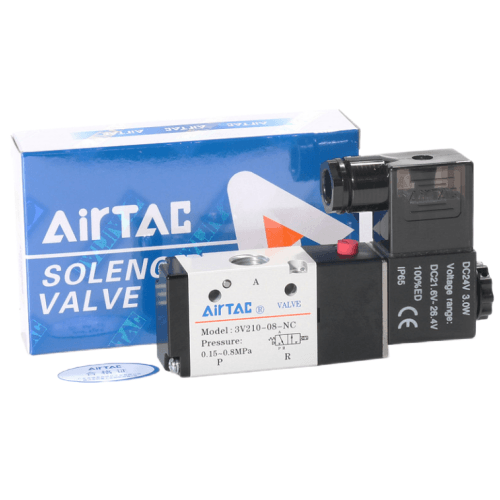

Airtac 3V200 Solenoid Valve 3V22006E
2. Spool-type structure with excellent sealing properties and high responsiveness;
3. Dual-coil design features memory function (position retention upon power loss);
4. Precision-engineered internal bore reduces friction resistance, enables low activation pressure (0.15MPa) and ensures extended service life;
5. Lubrication-free operation;
6. Integrated manual override for simplified commissioning and maintenance;
7. Multiple standardized voltage options available;
8. Modular valve system compatibility with manifold bases for space-optimized installations.
Category: Solenoid Valves | Brand: AirTAC | Series: 3V200
AirTAC 3V200 Series Solenoid Valve 3V22006E Technical Details
- Model: 3V22006E (Full model code: 3V220-06E)
- Valve type: 5/2-way single solenoid spring return
- Port configuration: PT1/4 (G1/4 ISO228-1 standard)
- Operating pressure range: 0.1-1.0 MPa (14.5-145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow capacity: 750 L/min (Cv=1.3 at 0.5MPa)
- Seal material: Heat-resistant NBR (Nitrile) -30℃ to 120℃
- Body material: Die-cast aluminum alloy with hard anodized finish
- Weight: 420g ±5% (without connector)
- Dimensions: 56mm(W) × 45mm(H) × 104mm(L)
- Power consumption: 2.2W (DC models), 3.5VA (AC models)
- Protection class: IP67 (dustproof & temporary immersion protection)
- Manual override: Built-in emergency push button
- Mounting options: Direct piping or sub-base mounting (ISO 5599-1 compatible)
High-flow 5/2-way pneumatic valve engineered for industrial automation systems requiring precise directional control. Features a dual-coil protection design with surge suppression and polarity reversal protection. The optimized spool structure achieves ≤0.5ms leakage rate at 0.5MPa, making it suitable for vacuum applications. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Automated assembly line cylinder control
- Plastic injection molding machine ejectors
- CNC tool changers and clamp systems
- Textile machinery air logic circuits
- Beverage filling station actuators
- Semiconductor wafer handling robots
Installation guidelines:
For optimal performance, maintain ambient temperature below 55℃.
Use flexible tubing to prevent vibration transfer.
Recommended maintenance: Lubricate every 2 million cycles or 6 months.
Allow 20mm clearance above valve for heat dissipation.
| Property | Property Value |
|---|---|
| sku | 3V22006E |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
| Standard Voltage | AC24V |
