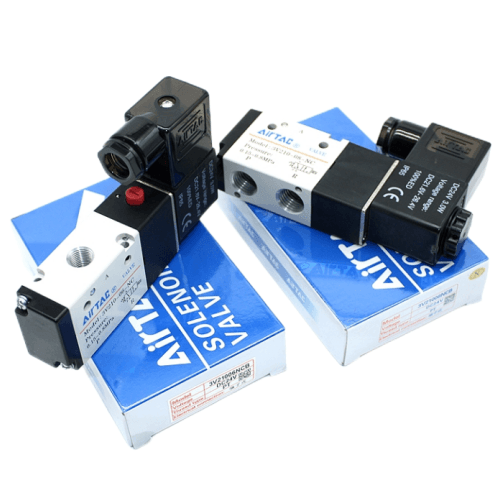

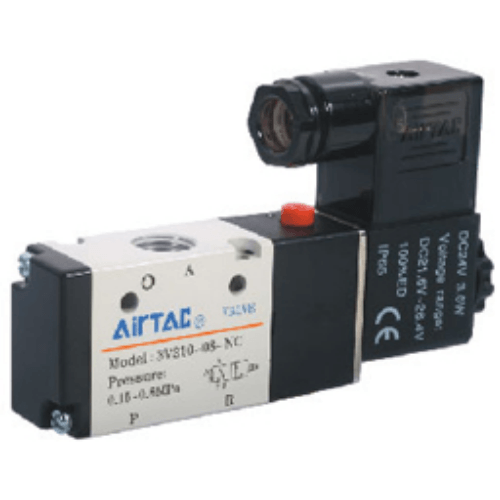

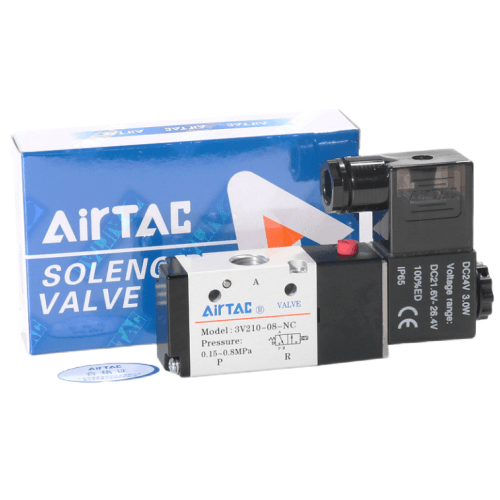

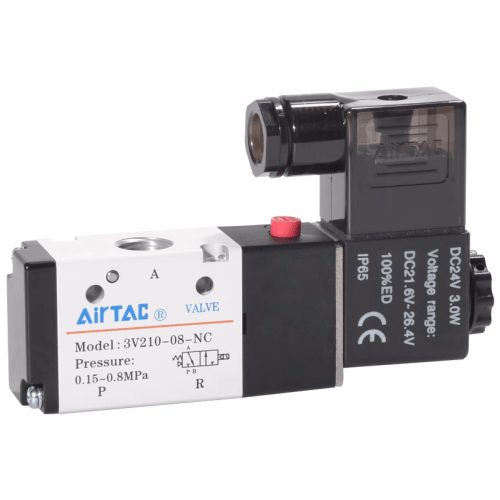

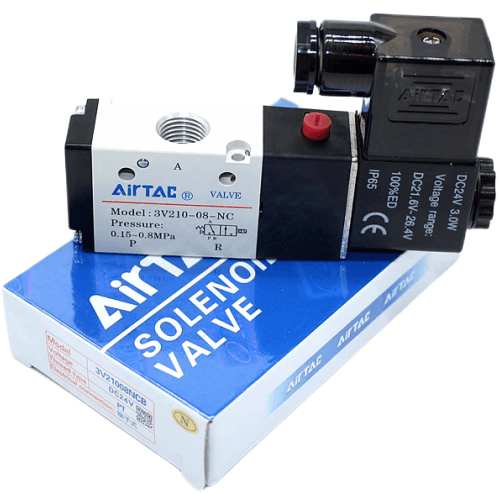

Airtac 3V200 Solenoid Valve 3V22008C
2. Spool-type structure with excellent sealing properties and high responsiveness;
3. Dual-coil design features memory function (position retention upon power loss);
4. Precision-engineered internal bore reduces friction resistance, enables low activation pressure (0.15MPa) and ensures extended service life;
5. Lubrication-free operation;
6. Integrated manual override for simplified commissioning and maintenance;
7. Multiple standardized voltage options available;
8. Modular valve system compatibility with manifold bases for space-optimized installations.
Category: Solenoid Valves | Brand: AirTAC | Series: 3V200
AirTAC 3V220-08C (3V22008C) Solenoid Valve Technical Specifications
- Model: 3V220-08C (3V22008C)
- Valve type: 5/2-way double solenoid (double pilot operated)
- Port configuration: PT1/4 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: 1200 NL/min (Cv=1.2 at 0.5 MPa)
- Response time: ≤15ms (exhaust to actuation)
- Seal material: High-grade HNBR (Hydrogenated Nitrile) with PTFE backup rings
- Ambient temperature: -5℃ to 80℃ (no freezing)
- Protection class: IP67 (dust-tight, protected against temporary immersion)
- Weight: 320g ±5% (including coil)
- Dimensions: 58mm(L) × 40mm(W) × 74mm(H) (body only)
- Mounting pitch: 30mm (DIN standard)
- Electrical connection: DIN43650 Form A connector (IP67 rated)
High-performance 5/2-way valve engineered for complex pneumatic circuits requiring precise bi-directional control. Features dual manual override buttons and corrosion-resistant aluminum alloy body with anodized finish. Optimized flow path reduces pressure drop by 18% compared to previous generation models. Requires 5μm filtered/dried air (dew point -20℃ below ambient).
- Rotary indexing tables in automated assembly lines
- Clamping/unclamping mechanisms in CNC machining centers
- Pneumatic cylinder sequencing systems
- Plastic injection molding machine ejectors
- Automotive brake testing equipment
Installation guidelines:
Maintain ≥15mm clearance from adjacent components for heat dissipation.
Use M5×16 stainless steel screws (1.2-1.5N·m torque).
For horizontal mounting, orient exhaust ports downward to prevent debris ingress.
Critical note:
Not compatible with phosphate ester-based lubricants.
Always install upstream filter regulator with automatic drain.
Maximum permissible voltage fluctuation: ±10% of rated voltage.
| Property | Property Value |
|---|---|
| sku | 3V22008C |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
| Standard Voltage | AC 110V |
