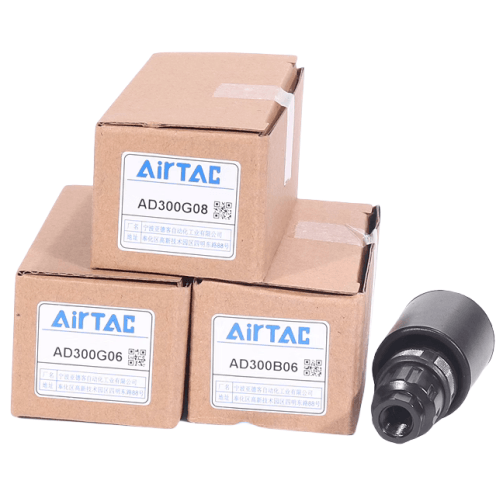

Airtac AD300 Automatic Drain AD300G08
AirTAC AD300G08 Automatic Drain Valve Specifications
- Model: AD300G08
- Type: Float-operated automatic drain with manual override
- Port connection: G1/8 (BSPP thread)
- Operating pressure range: 0.05–0.9 MPa
- Max drainage capacity: 30 L/min (at 0.5 MPa)
- Operating temperature: 5℃ to 60℃ (no freezing)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR
- Weight: 280g ±5g
- Dimensions: 68mm(H) × 40mm(W) × 35mm(D)
- Protection rating: IP54 (splash resistant)
- Drain outlet: 6mm push-to-connect fitting
- Inlet pressure tolerance: ±10% of rated pressure

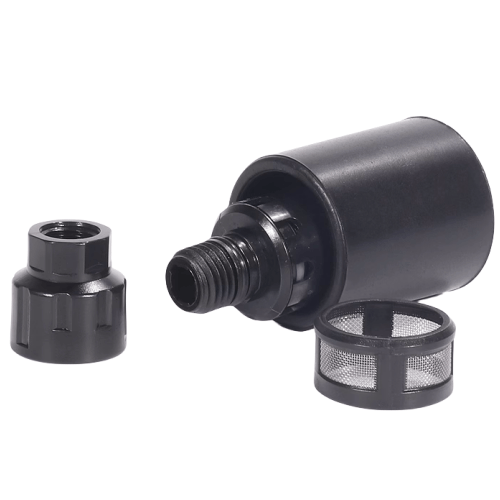

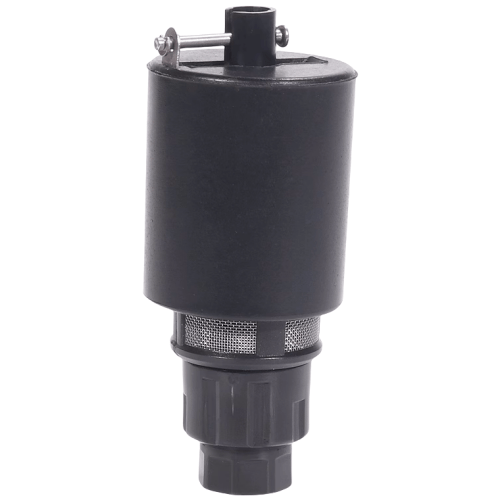

Mechanical auto-drain valve with visual operation indicator window, designed for continuous condensate removal in compressed air systems. Features zero energy consumption design with dual-mode operation: automatic float activation when accumulating 3mL water, or manual purge via side lever. Corrosion-resistant construction with built-in strainer prevents particle ingress.
- Air compressor aftercoolers and receivers
- CNC machine tool pneumatic circuits
- Food-grade air preparation systems
- Plastic injection molding dryers
- Railway brake air reservoirs
Installation note:
Mount vertically with arrow aligned to airflow direction. Perform weekly manual purges
during high-humidity seasons. Replace internal filter screen every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | AD300G08 |
