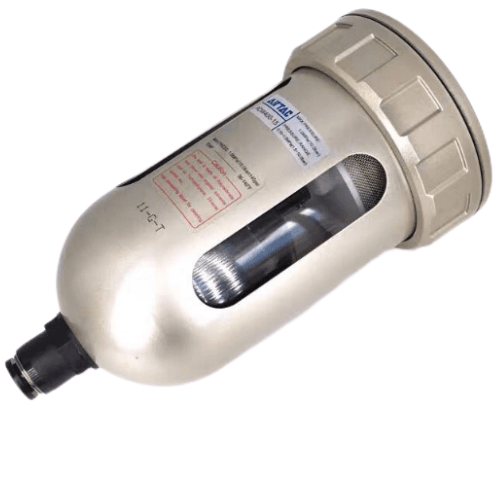

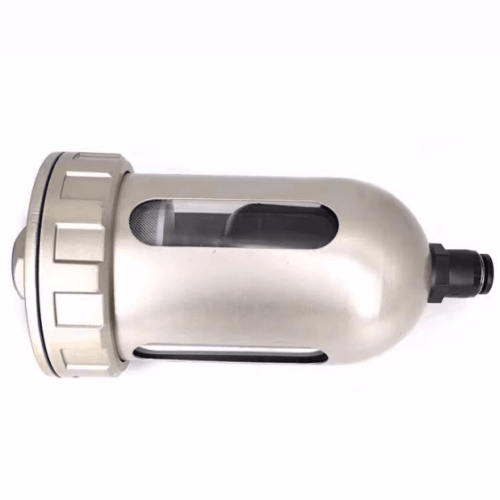

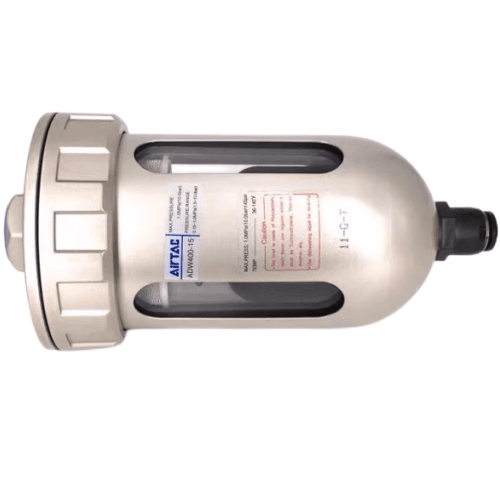

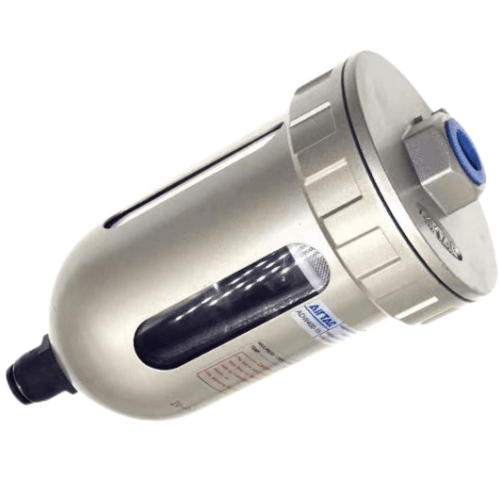

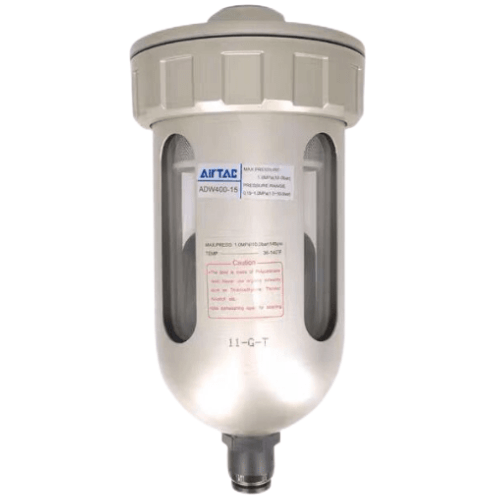

Airtac ADW End Drain ADW40010
2. High-strength polycarbonate bowl with 9mm reinforced protective cover enhances operational safety and reliability;
3. Dual stainless steel filter screens maintain normal drainage function with double protection;
4. Large-diameter inlet passage prevents particle accumulation and eliminates dead corners in the flow path;
5. High-capacity contamination reservoir filters and stores significantly more rust residues than standard drain valves;
6. Oversized float design delivers strong buoyancy and precise control responsiveness;
7. Extra-large collection chamber reduces discharge frequency by storing substantial water volume, extending service life. Category: Automatic Drain Valves | Brand: AirTAC | Series: ADW
AirTAC ADW40010 End Drainage Unit Technical Details
- Model: ADW40010
- Type: Automatic condensate drain (timer-controlled)
- Drainage method: Intermittent pulse discharge
- Operating pressure: 0.15–1.0 MPa
- Max flow rate: 300 L/min (ANR)
- Connection port: Rc1/4 (BSPP)
- Body material: Die-cast zinc alloy (chromate plated)
- Seal material: Fluororubber (FKM)
- Voltage options: DC24V ±10% / AC110V 50/60Hz / AC220V 50/60Hz
- Power consumption: 3.5W max
- Drain interval: Adjustable 1-30 minutes
- Operating temperature: -5℃ to 60℃ (no freezing)
- Protection rating: IP67
- Weight: 120g ±5%
- Dimensions: 80mm(L) × 50mm(W) × 30mm(H)
Automatic drain valve featuring corrosion-resistant construction and programmable purge cycles. The dual-chamber design prevents air loss during drainage, with hardened stainless steel needle valve ensuring 500,000+ cycle durability. Includes manual override button for maintenance purges.
- Air compressor aftercooler drainage systems
- CNC machine tool air preparation units
- Food processing pneumatic lines (FDA-compliant version available)
- High-humidity environment air dryers
- Railway braking system moisture control
Maintenance protocol:
Perform monthly diaphragm inspection in high-contaminant environments.
Install downstream of 5μm filter for optimal service life. Drain bowl capacity: 15mL.
| Property | Property Value |
|---|---|
| sku | ADW40010 |
| Port Size | PT3/8 |
