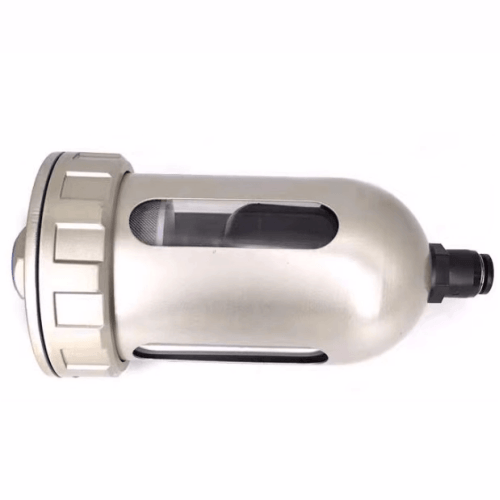

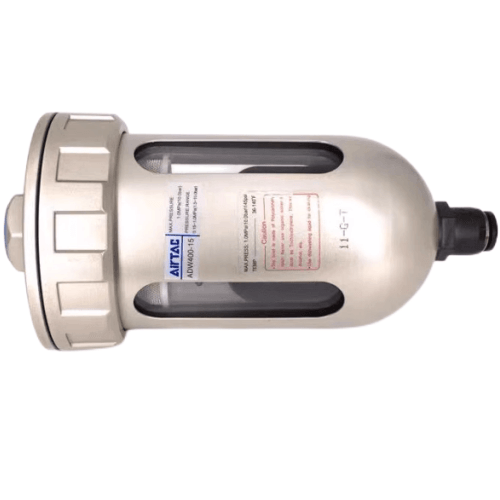

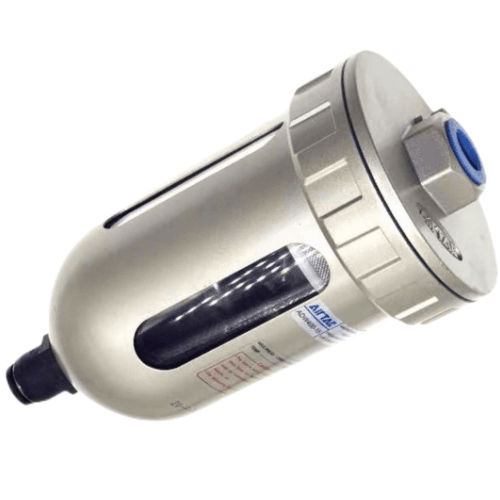

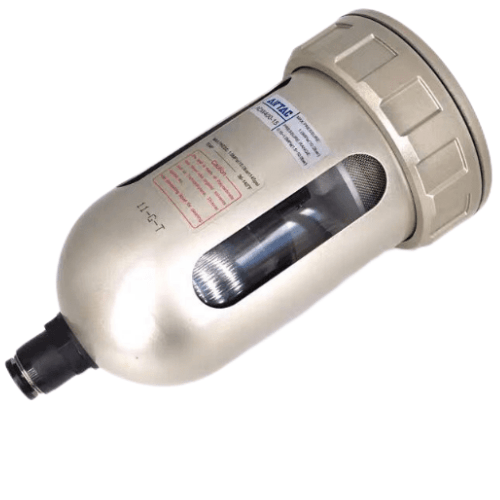

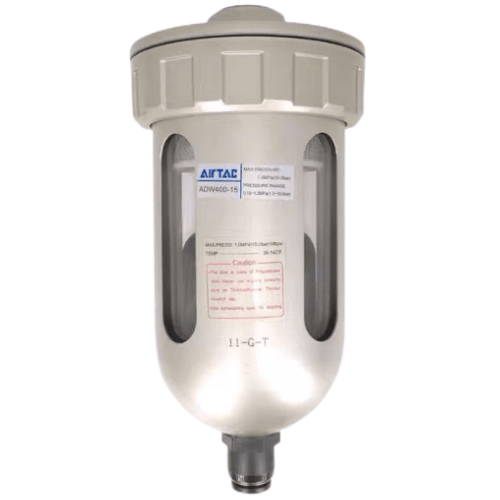

Airtac ADW End Drain ADW40015
$44.16
Regular price
$51.66
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ADW40015
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
ADW Series Automatic Drain Valve Technical Features:
1. Floating lever mechanism with low starting position ensures stable drainage performance;
2. High-strength polycarbonate bowl with 9mm reinforced protective cover enhances operational safety and reliability;
3. Dual stainless steel filter screens maintain normal drainage function with double protection;
4. Large-diameter inlet passage prevents particle accumulation and eliminates dead corners in the flow path;
5. High-capacity contamination reservoir filters and stores significantly more rust residues than standard drain valves;
6. Oversized float design delivers strong buoyancy and precise control responsiveness;
7. Extra-large collection chamber reduces discharge frequency by storing substantial water volume, extending service life. Category: Automatic Drain Valves | Brand: AirTAC | Series: ADW
Installation note:
Install vertically with arrow mark pointing downward.
Include shut-off valve upstream for maintenance.
Recommended to install downstream of air filter (5-10 micron).
2. High-strength polycarbonate bowl with 9mm reinforced protective cover enhances operational safety and reliability;
3. Dual stainless steel filter screens maintain normal drainage function with double protection;
4. Large-diameter inlet passage prevents particle accumulation and eliminates dead corners in the flow path;
5. High-capacity contamination reservoir filters and stores significantly more rust residues than standard drain valves;
6. Oversized float design delivers strong buoyancy and precise control responsiveness;
7. Extra-large collection chamber reduces discharge frequency by storing substantial water volume, extending service life. Category: Automatic Drain Valves | Brand: AirTAC | Series: ADW
AirTAC ADW40015 Automatic Drain Valve Specifications
- Model: ADW40015
- Type: Float-operated automatic drain valve
- Port connection: Rc1/4 (BSPP 1/4") female thread
- Operating pressure range: 0.05–1.0 MPa
- Max operating temperature: 80℃ (176℉)
- Body material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Flow capacity: 150 L/min (at 0.5 MPa)
- Weight: 230g ±5g
- Dimensions: 52mm(D) × 75mm(H) (excluding connection port)
- Drain discharge type: Continuous automatic drainage
- Protection rating: IP40 (standard installation)
- Compliance: RoHS compliant
High-efficiency condensate eliminator with mechanical float mechanism, designed for continuous operation in compressed air systems. Features corrosion-resistant construction with visible drain chamber for maintenance monitoring. Includes anti-clogging design for debris resistance.
Typical Applications:
- Air compressor aftercooler drainage
- Pneumatic system receiver tanks
- Air dryer condensate management
- Industrial air preparation units
- CNC machine tool air lines
Installation note:
Install vertically with arrow mark pointing downward.
Include shut-off valve upstream for maintenance.
Recommended to install downstream of air filter (5-10 micron).
Maintenance:
Drain bowl should be inspected monthly for sediment buildup.
Replace O-ring (P/N: ADW-OR15) every 2 years or 10,000 cycles.
Do not use silicone-based lubricants.
| Property | Property Value |
|---|---|
| sku | ADW40015 |
| Port Size | PT 1/2 |
