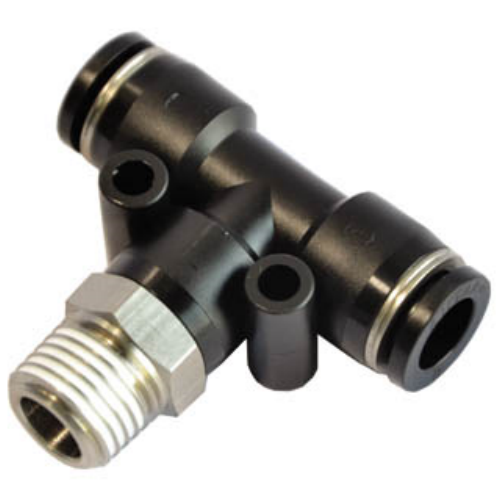

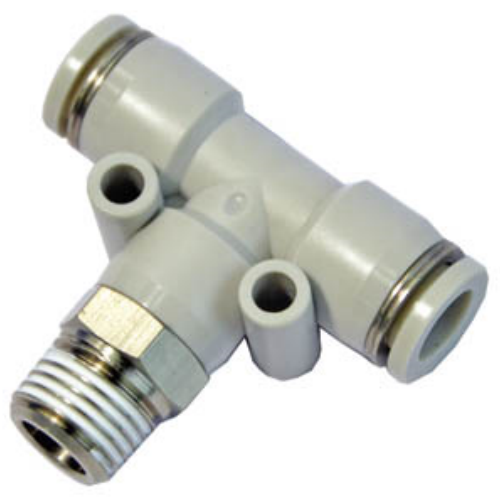

Airtac APB Straight Tee Fitting APB10-04
$5.39
Regular price
$12.89
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB10-04
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation note:
Apply thread sealant to male threads only. Tighten to 1.2-1.5N·m torque.
Avoid overtightening - maximum deformation allowance 0.15mm.
Compatible with Φ4mm and Φ6mm tubing when used with reducers.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB Series Tee Connector APB10-04 Specifications
- Model: APB10-04
- Type: Straight thread tee (positive pattern)
- Thread standard: Metric (M5×0.8)
- Material: Nickel-plated brass (C3604)
- Operating pressure: 0.05–1.0 MPa
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -5℃ to 80℃
- Port configuration: 3-way equal diameter
- Seal type: Integral O-ring (NBR)
- Surface roughness: Ra ≤3.2μm
- Weight: 12.5g ±0.3g
- Dimensions: 22.5mm(L) × 16mm(W) × 16mm(H)
Precision-engineered brass tee connector with triple sealing surfaces, designed for leak-free branching in compact pneumatic systems. Features 360° rotatable ports for flexible tubing alignment and nickel plating for corrosion resistance in humid environments.
Typical Applications:
- Branching pneumatic circuits in robotic grippers
- Multi-tool air supply distribution
- Medical device gas line manifolds
- Compressed air instrumentation systems
- Automated packaging machine air networks
Installation note:
Apply thread sealant to male threads only. Tighten to 1.2-1.5N·m torque.
Avoid overtightening - maximum deformation allowance 0.15mm.
Compatible with Φ4mm and Φ6mm tubing when used with reducers.
| Property | Property Value |
|---|---|
| sku | APB10-04 |
