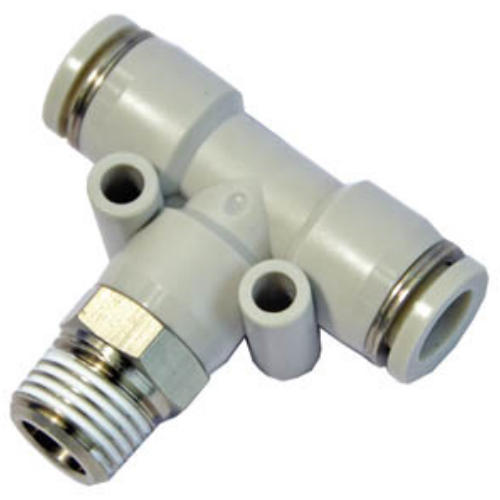

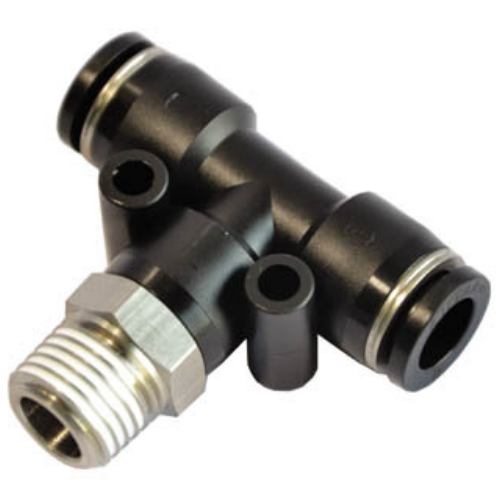

Airtac APB Straight Tee Fitting APB12-M12
$5.39
Regular price
$12.89
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB12-M12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads (Do NOT over-tighten).
Maximum recommended torque: 12–15 N·m.
For vertical installations, orient outlets downward to prevent condensate accumulation.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB Series Straight Tee Connector APB12-M12 Technical Details
- Model: APB12-M12
- Type: Straight thread tee connector (equal distribution)
- Body material: Nickel-plated brass (Stainless steel optional)
- Thread standard: M12×1.0 (ISO 228-1)
- Port configuration: 3-way (1 inlet, 2 outlets)
- Operating pressure: 0.05–1.5 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (HNBR/FKM available for special orders)
- Surface treatment: Electrolytic polishing
- Weight: 28±2g
- Dimensions: 25mm(L) × 12mm(D) × 25mm(H)
- Flow coefficient (Cv): 0.15
- Pressure drop: ≤0.02 MPa @ 0.5 MPa supply
- Vibration resistance: 10–55Hz @ 1.5mm amplitude
Precision-engineered pneumatic tee connector featuring triple-sealed threads and optimized flow channels. The 60° cone seating design ensures leak-free connections even under pulsating pressure conditions. Compatible with ISO 15407-1 compliant push-in fittings.
Common Applications:
- Branch line connections in pneumatic manifolds
- Sensor mounting air supply distribution
- Robotic end-effector pneumatic circuits
- Compressed air instrumentation systems
- Modular pneumatic training equipment
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads (Do NOT over-tighten).
Maximum recommended torque: 12–15 N·m.
For vertical installations, orient outlets downward to prevent condensate accumulation.
Fluid compatibility:
Dry air, nitrogen, inert gases (Not suitable for oxygen-rich/combustible gases)
