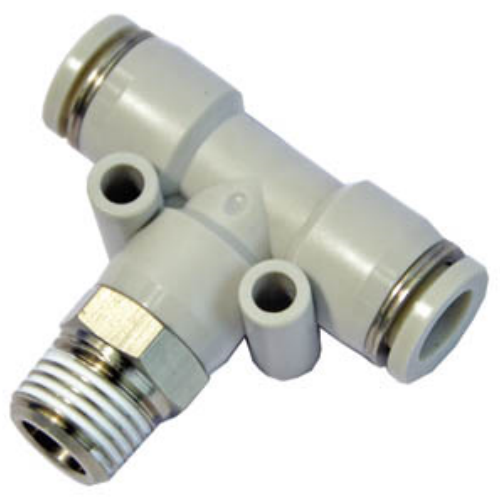

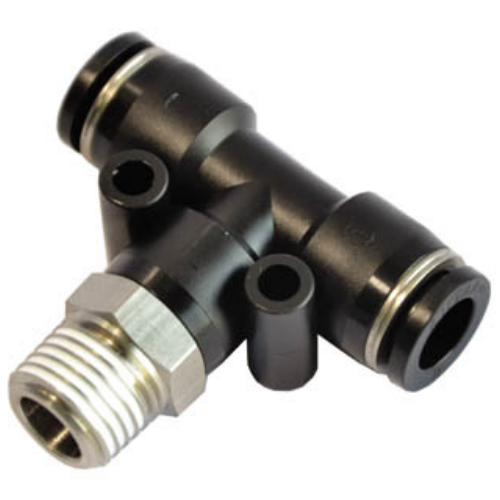

Airtac APB Straight Tee Fitting APB14-03
$10.04
Regular price
$17.54
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB14-03
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation note:
Apply 2-3 wraps of PTFE tape on male threads (clockwise winding).
Tighten with 12-15 N·m torque using backup wrench to prevent tube distortion.
Avoid overtightening - maximum allowable torque 18 N·m.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB Series Positive Type Tee Joint APB14-03 Specifications
- Model: APB14-03
- Type: Equal tee fitting (positive thread)
- Thread standard: BSPP (G thread)
- Port size: PT1/4 (G1/4)
- Material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Max working pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃
- Surface treatment: Electrolytic polishing
- Weight: 22g ±0.5g
- Dimensions: 25mm (L) × 18mm (W) × 18mm (H)
- Thread engagement depth: 10mm
- Pressure test: 2.25 MPa (air/water, 3 minutes)
Precision-machined brass tee connector with leak-proof NBR seals, designed for stable flow distribution in pneumatic systems. Features corrosion-resistant nickel plating and bubble-tight sealing performance. Compatible with ISO 1179-2 standard fittings.
Typical Applications:
- Branching pneumatic circuits in automation equipment
- Compressed air distribution in production lines
- Tooling machine pneumatic networks
- Packaging machinery air supply systems
- Industrial robot end-effector air routing
Installation note:
Apply 2-3 wraps of PTFE tape on male threads (clockwise winding).
Tighten with 12-15 N·m torque using backup wrench to prevent tube distortion.
Avoid overtightening - maximum allowable torque 18 N·m.
| Property | Property Value |
|---|---|
| sku | APB14-03 |
