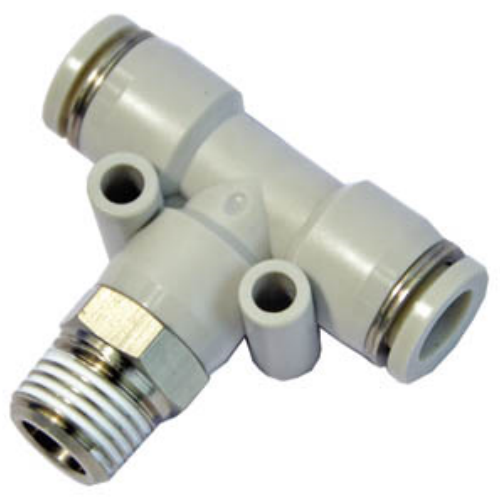

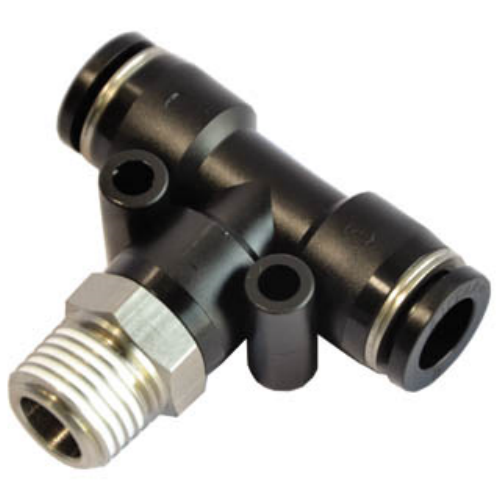

Airtac APB Straight Tee Fitting APB4-02
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB4-02
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten to 1.2-1.5 N·m torque using backup wrench.
Avoid overtightening which may deform sealing surface.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB Series Positive Type Tee Connector APB4-02 Technical Details
- Model: APB4-02 (Straight Thread Type)
- Thread standard: Metric (M5×0.8)
- Material: Lead-free brass CW617N
- Seal material: HNBR rubber (NBR optional)
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Operating temperature: -20℃ to 80℃ (dry air)
- Fluid compatibility: Compressed air, inert gases
- Surface treatment: Nickel plating (3-5μm)
- Weight: 14.7±0.5g
- Dimensions: 20mm(Length) × 12mm(Width) × 12mm(Height)
- Flow coefficient (Cv): 0.15
- Leakage rate: ≤3 bubbles/min (ISO 6952)
Precision-engineered brass tee connector with triple-seal structure for leak-free branching in pneumatic circuits. Features 360° rotatable ports for flexible piping alignment and anti-vibration thread design. Compatible with ISO 1179-1 standard fittings.
Common Applications:
- Branch line creation in factory automation manifolds
- Modular pneumatic test bench setups
- Medical device gas distribution systems
- Robotic gripper air circuit splitting
- CNC machine tool pneumatic networks
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten to 1.2-1.5 N·m torque using backup wrench.
Avoid overtightening which may deform sealing surface.
Pair with:
APM series push-to-connect fittings or
APS series plastic tubing for optimal performance.
Not recommended for hydraulic fluids or aggressive gases.
