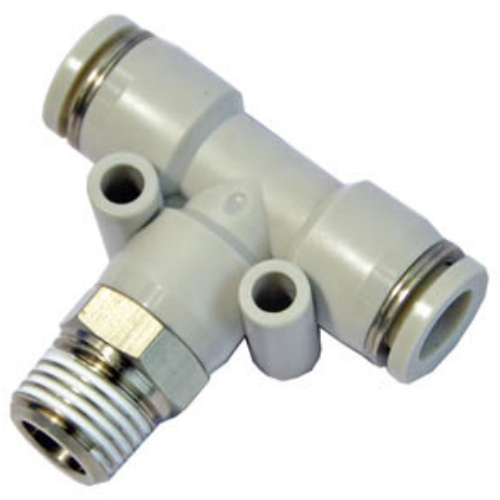

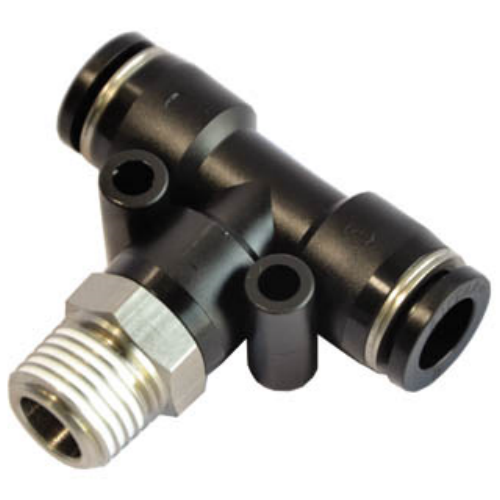

Airtac APB Straight Tee Fitting APB4-M10
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB4-M10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation note:
Apply 2-3 wraps of PTFE tape on male threads. Tightening torque should not exceed 20N·m.
For vertical installations, use thread locker on bottom port connections.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB Series Straight Tee Connector APB4-M10 Technical Details
- Model: APB4-M10
- Type: Straight thread tee connector (positive pattern)
- Thread standard: Metric (M)
- Port size: M10×1.0 (triple ports)
- Material: Brass with nickel plating
- Surface hardness: ≥HV300
- Operating pressure: 0.05–1.5 MPa
- Burst pressure: ≥6 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (nitrile rubber)
- Thread torque resistance: ≤25 N·m
- Weight: 28±2g
- Dimensions: 32mm(L) × 24mm(W) × 24mm(H)
- Vibration resistance: 10–2000Hz, 10g acceleration
- Certification: RoHS compliant
Precision-machined tee connector featuring triple M10×1.0 ports in compact orthogonal configuration. The electroless nickel coating provides enhanced corrosion resistance exceeding 96hrs salt spray test. Optimized flow path design ensures minimal pressure drop (ΔP<0.02MPa @1MPa).
Typical Applications:
- Branch line connections in pneumatic automation systems
- Modular assembly of FRL (Filter-Regulator-Lubricator) units
- Tooling fixture air circuit distribution
- Medical gas line manifolds
- Robotic end-effector pneumatic networks
Installation note:
Apply 2-3 wraps of PTFE tape on male threads. Tightening torque should not exceed 20N·m.
For vertical installations, use thread locker on bottom port connections.
Compatible Accessories:
- APM series bulkhead unions
- ASN series nylon tubing (φ6–φ12mm)
- APC series push-to-connect fittings
| Property | Property Value |
|---|---|
| sku | APB4-M10 |
