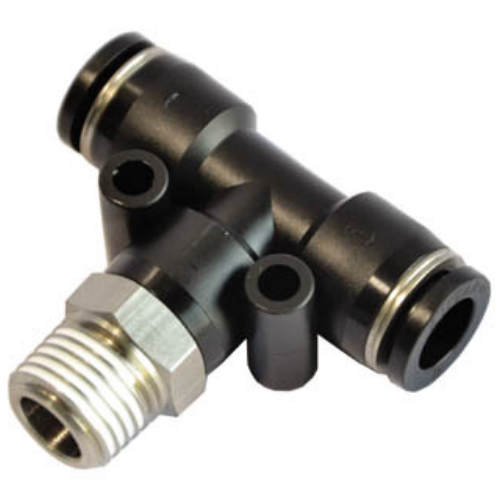

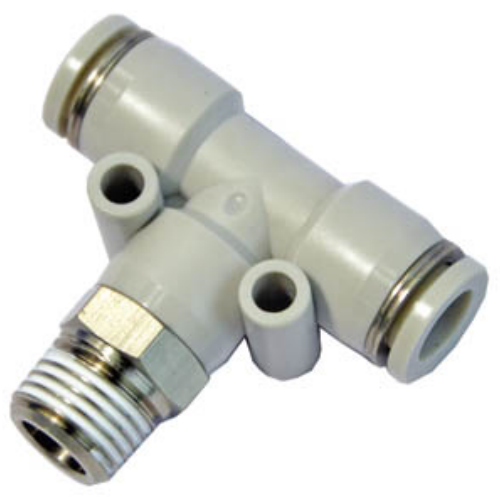

Airtac APB Straight Tee Fitting APB4-M6
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB4-M6
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation guidelines:
Apply 2-3 drops of LOCTITE® 577 thread sealant (max torque 2.5N·m).
Avoid overtightening - use calibrated torque wrench.
Not recommended for continuous rotation applications.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB Series Positive Tee Connector APB4-M6 Technical Details
- Model: APB4-M6
- Type: Straight thread tee (equal division)
- Thread specification: M6×1.0 (ISO metric standard)
- Material: C3604 brass with nickel plating
- Surface hardness: ≥HV200 (nickel layer)
- Pressure rating: 0.05-1.5 MPa
- Burst pressure: ≥6 MPa
- Temperature range: -5℃ to 100℃ (with NBR seals)
- Seal material: NBR (standard), optional FKM/Viton®
- Port configuration: Three M6 female threads (1 inlet, 2 outlets)
- Flow coefficient: Cv≈0.15
- Weight: 18.5±0.5g
- Dimensions: 21.5mm(L) × 14.2mm(W) × 14.2mm(H)
- Certification: RoHS compliant
- Thread engagement depth: 8mm minimum
Precision-machined brass tee connector with electroless nickel coating for corrosion resistance. Features 120° equal-angle flow distribution and leak-proof design with integrated O-ring grooves. Compatible with ISO 6149-3 standards for pneumatic systems.
Typical Applications:
- Branch line connections in pneumatic control systems
- Modular pneumatic component assemblies
- Air compressor distribution networks
- Industrial automation equipment manifolds
- CNC machine tool pneumatic circuits
Installation guidelines:
Apply 2-3 drops of LOCTITE® 577 thread sealant (max torque 2.5N·m).
Avoid overtightening - use calibrated torque wrench.
Not recommended for continuous rotation applications.
| Property | Property Value |
|---|---|
| sku | APB4-M6 |
