Airtac APB Straight Tee Fitting APB4-M8
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB4-M8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape on male threads (clockwise winding).
Tighten to 2.5-3.5 N·m torque using backup wrench. Avoid overtightening
which may cause port deformation. Compatible with Φ4mm OD tubing.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB

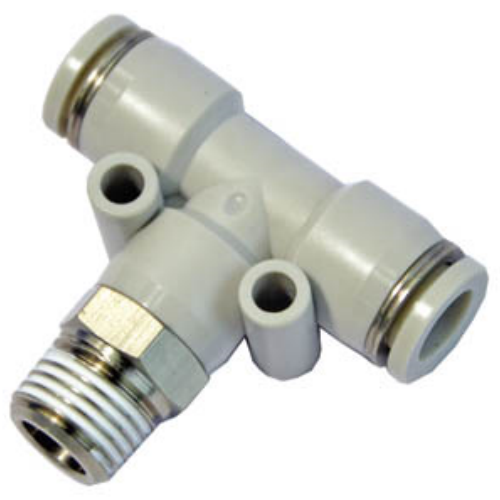

AirTAC APB Series Straight Tee Connector APB4-M8 Technical Details
- Model: APB4-M8
- Type: Straight thread tee fitting (equal distribution)
- Body material: Nickel-plated brass (CuZn39Pb3)
- Thread standard: Metric (M8×1.0)
- Seal material: NBR (Nitrile rubber)
- Pressure range: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃ (with silicone seals optional up to 120℃)
- Flow capacity: 120 NL/min @0.5MPa
- Thread engagement depth: 6.5±0.5mm
- Surface hardness: HV0.3 ≥200
- Weight: 18.5g ±0.3g
- Dimensions: 24mm(L) × 19mm(W) × 19mm(H)
- Corrosion resistance: 96hrs neutral salt spray test
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined tee connector with triple O-ring sealing structure, featuring 360° rotatable ports for flexible piping layouts. The lead-free plating ensures compliance with RoHS directives. Designed for leak-free performance under cyclic pressure variations.
Typical Applications:
- Pneumatic circuit branching in CNC machinery
- Modular assembly of automation test benches
- Air supply distribution for packaging line actuators
- Medical device pneumatic control systems
- Laboratory equipment air logic networks
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape on male threads (clockwise winding).
Tighten to 2.5-3.5 N·m torque using backup wrench. Avoid overtightening
which may cause port deformation. Compatible with Φ4mm OD tubing.
| Property | Property Value |
|---|---|
| sku | APB4-M8 |
