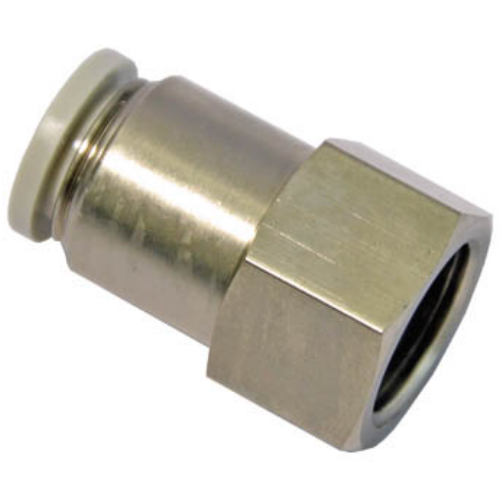

Airtac APCF Female Thread Straight Connector APCF10-M12
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APCF10-M12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Available in multiple models/specifications for wide application across pneumatic systems;
2. Features excellent flow performance with capacity equivalent to tubing inner diameter;
3. Enables tool-free push-in/pull-out operation while maintaining secure and durable tubing connections;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-proof threaded joints;
5. Nickel-plated brass body provides superior corrosion and contamination resistance for expanded application scope.
Category: Internal Thread Straight Fittings | Brand: AirTAC | Series: APCF
Mounting guidance:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten beyond 15N·m).
For vertical installations, use thread locker on lower ports.
Maximum angular misalignment tolerance: ±3°.
2. Features excellent flow performance with capacity equivalent to tubing inner diameter;
3. Enables tool-free push-in/pull-out operation while maintaining secure and durable tubing connections;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-proof threaded joints;
5. Nickel-plated brass body provides superior corrosion and contamination resistance for expanded application scope.
Category: Internal Thread Straight Fittings | Brand: AirTAC | Series: APCF
AirTAC APCF10-M12 Internal Thread Straight Connector Technical Details
- Series: APCF (Metric Thread Straight Connector Series)
- Thread Specification: M12×1.5 internal thread (ISO 6149 compliant)
- Material: Nickel-plated brass (Stainless steel SS304 optional)
- Seal Type: Double O-ring structure
- Seal Material: NBR (Nitrile) standard / FKM (Fluorocarbon) optional
- Operating Pressure: 0.5-1.6 MPa (72-232 psi)
- Proof Pressure: 2.4 MPa
- Burst Pressure: ≥3.2 MPa
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Surface Treatment: Electroless nickel plating (5-8μm thickness)
- Weight: 48g ±2g
- Dimensions: 30mm(L) × 15mm(Dia) × 15mm(Hex size)
- Port Orientation: 90° straight through design
- Fluid Compatibility: Compressed air, inert gases (N₂ recommended)
- Vibration Resistance: ≤10 m/s² (ISO 10816-3 compliant)
Precision-engineered straight connector featuring dual-stage sealing for leak-free pneumatic connections. The hexagonal body design allows 360° tool access in confined spaces. Nickel plating provides corrosion resistance exceeding 96hrs in salt spray tests (ASTM B117).
Installation Scenarios:
- Modular pneumatic circuit assembly in robotics
- High-cycle automation equipment manifolds
- CNC machine tool pneumatic interfaces
- Food processing machinery (SS304 version with FKM seals)
- Laboratory gas distribution systems
Mounting guidance:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten beyond 15N·m).
For vertical installations, use thread locker on lower ports.
Maximum angular misalignment tolerance: ±3°.
System Integration:
Matches with ISO 15407-1 compliant tubing (8mm OD recommended).
Compatible with AirTAC APMF/APSF series manifolds.
Requires G1/8 to M12 adapter (sold separately) for legacy systems.
| Property | Property Value |
|---|---|
| sku | APCF10-M12 |
