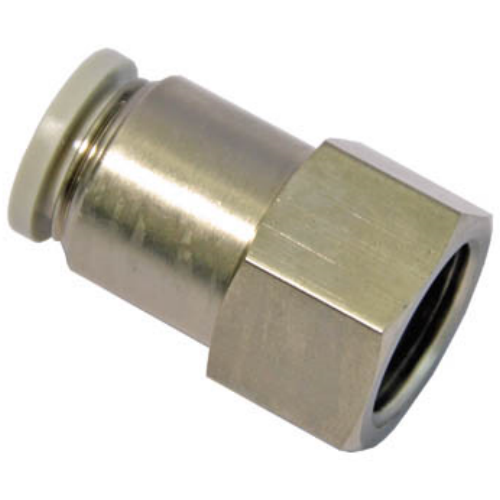

Airtac APCF Female Thread Straight Connector APCF12-01
2. Features excellent flow performance with capacity equivalent to tubing inner diameter;
3. Enables tool-free push-in/pull-out operation while maintaining secure and durable tubing connections;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-proof threaded joints;
5. Nickel-plated brass body provides superior corrosion and contamination resistance for expanded application scope.
Category: Internal Thread Straight Fittings | Brand: AirTAC | Series: APCF
AirTAC APCF12-01 Female Thread Straight Connector Specifications
- Model: APCF12-01
- Type: Female threaded straight union connector
- Thread standard: Metric (M) / BSPP optional
- Thread size: M12×1.25 (equivalent to PT1/8)
- Material: Brass with nickel plating (anti-corrosion treatment)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: NBR (Nitrile) rubber standard (FKM/Viton® optional)
- Flow coefficient (Cv): 0.45
- Compliance: RoHS compliant
- Weight: 19.8g ±0.5g
- Dimensions: 30mm (L) × 12mm (Dia) × 12mm (Port width)
Precision-machined connector featuring 360° rotatable port alignment for flexible installation. The hexagonal body design enables tool-free hand tightening while maintaining leak-proof performance under vibration. Electroless nickel plating provides corrosion resistance in humid environments.
- Pneumatic cylinder port connections
- Modular automation system piping
- Compressed air distribution networks
- Packaging machine tooling interfaces
- Medical gas line quick-connect systems
Installation note:
Apply 2-3 wraps of PTFE tape on male threads before assembly.
Tighten to 10-12 N·m torque maximum. Avoid cross-threading -
initial engagement should rotate freely by hand.
| Property | Property Value |
|---|---|
| sku | APCF12-01 |
