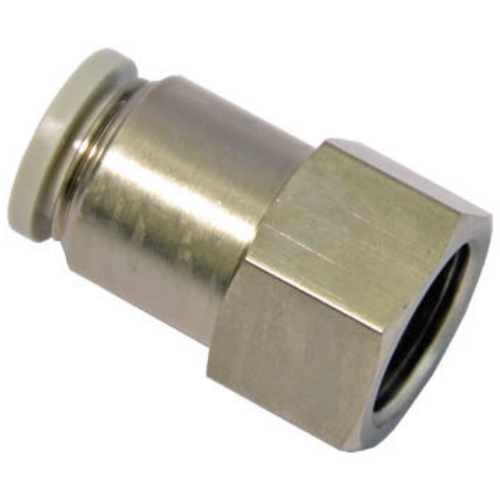

Airtac APCF Female Thread Straight Connector APCF4-M6
2. Features excellent flow performance with capacity equivalent to tubing inner diameter;
3. Enables tool-free push-in/pull-out operation while maintaining secure and durable tubing connections;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-proof threaded joints;
5. Nickel-plated brass body provides superior corrosion and contamination resistance for expanded application scope.
Category: Internal Thread Straight Fittings | Brand: AirTAC | Series: APCF
AirTAC APCF Female Thread Straight Fitting APCF4-M6 Technical Details
- Model: APCF4-M6
- Type: Female threaded straight connector (dual internal threads)
- Thread standard: Metric fine thread (M6×1.0)
- Material: Nickel-plated brass (standard) / Stainless steel SS304 (optional)
- Operating pressure: 0.2-1.0 MPa (29-145 psi)
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: NBR (standard) / FKM (high-temp option)
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Weight: 8.2g ±0.3g
- Dimensions: 20mm(L) × 10mm(W) × 10mm(H)
- Flow coefficient (Cv): 0.15
- Certification: RoHS compliant
A precision-engineered straight-through fitting with dual M6 female threads, designed for leak-free connections in compact pneumatic systems. Features a smooth internal bore (3mm diameter) for minimal flow restriction and corrosion-resistant nickel plating. The 360° rotatable design allows flexible orientation adjustment during installation.
- Modular pneumatic circuit assembly in robotics
- Sensor mounting brackets in automated production lines
- Inline pressure gauge connections
- Medical device gas delivery systems
- 3D printer pneumatic extruder connections
Installation guidelines:
Apply thread sealant (PTFE tape or liquid seal) to male threads before assembly.
Tighten to 1.2-1.5 N·m torque using a crowfoot wrench. Perform pressure test
at 1.5× working pressure after installation. Not recommended for continuous
rotational motion applications.
| Property | Property Value |
|---|---|
| sku | APCF4-M6 |
