Airtac APD T-Side Port Tee Fitting APD10-02
$4.87
Regular price
$12.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APD10-02
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple models and specifications, widely applicable to diverse pneumatic systems;
2、Superior flow performance enabling throughput equivalent to the inner diameter of connected tubing;
3、Tool-free insertion/extraction design ensures efficient tube connection with secure and durable sealing;
4、Pre-applied thread sealant on M5 metric threads with integrated sealing washer guarantees leak-proof integrity;
5、Nickel-plated brass construction provides corrosion and contamination resistance for expanded application scope.
Category: T-Port Tee Connectors , Brand: Airtac , Series: APD
Installation note:
Apply 0.8–1.2 N·m torque during assembly. Use thread sealant only
on male threads, avoiding contact with O-ring surfaces. Maximum
lateral load: 15N. Rotate fittings during pressure testing to
verify leak-free alignment.
2、Superior flow performance enabling throughput equivalent to the inner diameter of connected tubing;
3、Tool-free insertion/extraction design ensures efficient tube connection with secure and durable sealing;
4、Pre-applied thread sealant on M5 metric threads with integrated sealing washer guarantees leak-proof integrity;
5、Nickel-plated brass construction provides corrosion and contamination resistance for expanded application scope.
Category: T-Port Tee Connectors , Brand: Airtac , Series: APD

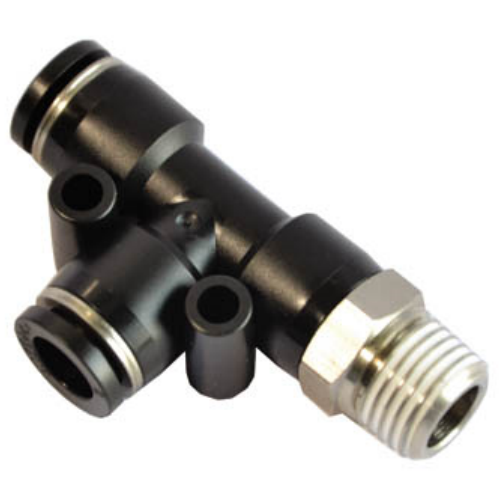

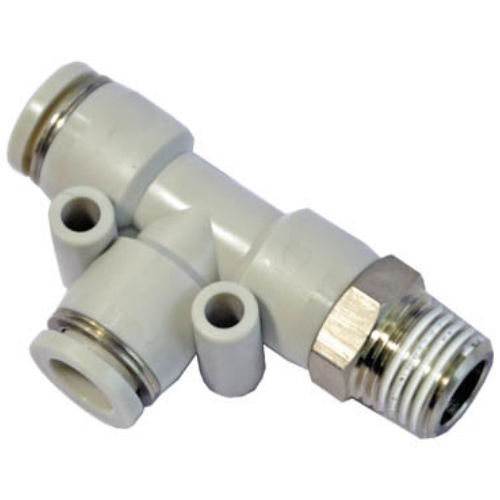

AirTAC APD T-Type Tee Fitting APD10-02 Technical Details
- Model: APD10-02
- Type: T-port compact tee connector (side entry)
- Thread standard: Metric (M5×0.8) / Optional BSPP (R1/8)
- Material: Brass (CuZn39Pb3) with nickel-plated surface
- Seal material: NBR (Nitrile) O-rings
- Pressure range: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃
- Flow capacity: 150 NL/min @ 0.5 MPa
- Weight: 24.5g ±0.3g
- Dimensions: 18mm(L) × 14mm(W) × 14mm(H)
- Surface roughness: Ra ≤1.6μm
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Precision-machined T-connector featuring dual sealing surfaces and anti-vibration grooves. The 90° side port design enables compact plumbing layouts while maintaining laminar flow characteristics. Nickel plating provides corrosion resistance in humid environments.
Typical Applications:
- Branch line connections in pneumatic control panels
- Modular pneumatic circuit prototyping
- Robotic arm end-effector air supply distribution
- Medical device pneumatic systems (ISO 13485 compliant)
- Food processing machinery (NSF-H1 grease compatible)
Installation note:
Apply 0.8–1.2 N·m torque during assembly. Use thread sealant only
on male threads, avoiding contact with O-ring surfaces. Maximum
lateral load: 15N. Rotate fittings during pressure testing to
verify leak-free alignment.
| Property | Property Value |
|---|---|
| sku | APD10-02 |
