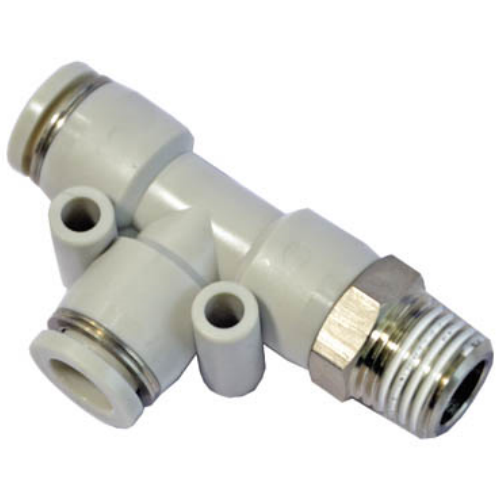

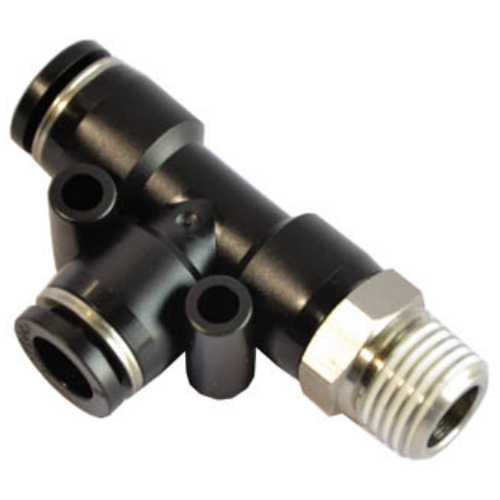

Airtac APD T-Side Port Tee Fitting APD12-M12
2、Superior flow performance enabling throughput equivalent to the inner diameter of connected tubing;
3、Tool-free insertion/extraction design ensures efficient tube connection with secure and durable sealing;
4、Pre-applied thread sealant on M5 metric threads with integrated sealing washer guarantees leak-proof integrity;
5、Nickel-plated brass construction provides corrosion and contamination resistance for expanded application scope.
Category: T-Port Tee Connectors , Brand: Airtac , Series: APD
AirTAC APD12-M12 T-Style Tee Connector Specifications
- Model: APD12-M12
- Type: Push-in T-style pneumatic tee connector
- Material: Nickel-plated brass body, NBR seals
- Thread standard: M12×1.0 (ISO 15407-1 compliant)
- Port configuration: 1 input, 2 output (90° branch)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃ (with intermittent peaks up to 100℃)
- Flow capacity: 450 NL/min @ 0.5 MPa
- Installation: 360° rotatable body with lock nut
- Tube compatibility: Φ4mm (5/32") OD polyurethane/nylon tubing
- Weight: 12g ±0.5g
- Dimensions: 20mm(L) × 12mm(W) × 12mm(H)
- Vibration resistance: ≤50m/s²
- Certification: RoHS compliant
Precision-machined tee connector featuring anti-vibration grooves and tool-free tube insertion. The rotating body allows flexible piping layouts in confined spaces. Nickel plating provides corrosion resistance for humid environments. Includes integrated O-ring for leak-free connections up to 1MPa.
- Branching pneumatic circuits in robotic end effectors
- Modular pneumatic test benches
- Compressed air distribution in CNC machinery
- Medical gas line splitting devices
- Automated packaging line air networks
Installation note:
Cut tubing ends square and deburr before insertion. For optimal sealing,
apply 0.8-1.2N·m torque during lock nut tightening. Maximum rotational
speed during assembly: 25 RPM.
| Property | Property Value |
|---|---|
| sku | APD12-M12 |
