Airtac APE Tee Fitting APE10
2. Available in multiple configurations and sizes to accommodate diverse pneumatic system requirements;
3. Features superior flow characteristics achieving throughput equivalent to the nominal inner diameter of connected tubing;
4. Incorporates push-to-connect design for rapid tubing installation while maintaining secure, vibration-resistant connections.
Category: T-Type Tee Fittings , Brand: AirTAC , Series: APE
AirTAC APE T-Type Tee Joint APE10 Technical Details
- Model: APE10 Series T-Type Tee
- Body material: Glass fiber reinforced POM (Polyoxymethylene)
- Thread standard: PT1/8 (BSPP) / M5×0.8 optional
- Max working pressure: 1.0 MPa (145 psi)
- Min burst pressure: 3.0 MPa (435 psi)
- Temperature range: -20℃ to 60℃ (operating) / -30℃ to 80℃ (non-operating)
- Seal material: HNBR (Hydrogenated Nitrile) O-rings
- Flow coefficient (Cv): 0.22
- Weight: 5.2g ±0.3g
- Dimensions: 19.5mm(L) × 16.8mm(W) × 16.8mm(H)
- Surface finish: Ra 3.2μm (internal flow paths polished)
- Vibration resistance: 10-2000Hz, 15G acceleration

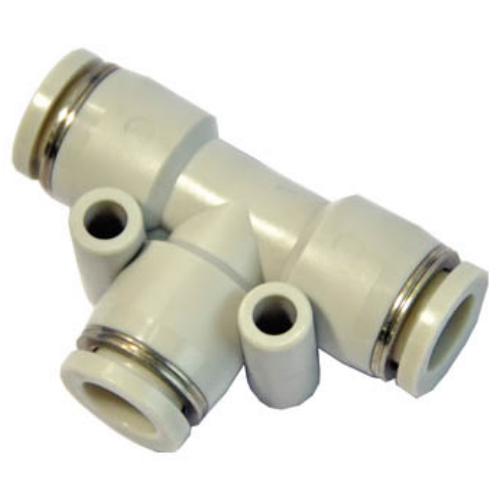

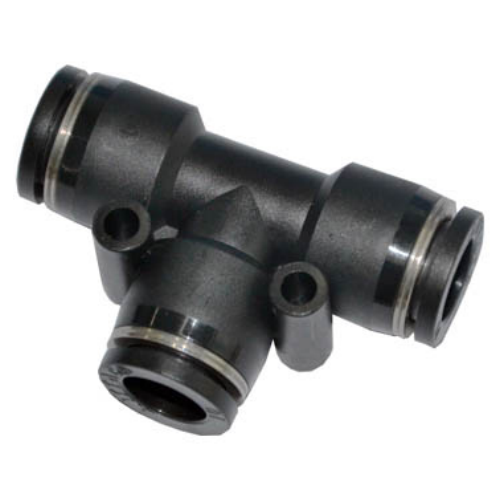

Precision-molded tee connector with triple-axis flow distribution, featuring 360° rotatable ports for flexible piping arrangements. The hexagonal body design allows tool-assisted tightening (8mm wrench size). Internal flow channels are optimized for minimal pressure drop (ΔP <0.02MPa @1.0MPa).
- Branch line creation in pneumatic logic circuits
- Modular assembly systems requiring compact flow division
- Sensor mounting interface for pressure monitoring points
- Vacuum system manifold connections
- Educational pneumatic training kits
Installation protocol:
Apply 1.5-2Nm torque during assembly. For vertical installations,
orient flow arrow (cast on body) downward to prevent particulate accumulation.
Requires initial 50-cycle break-in period for optimal sealing.
- Optimal with PU4×6mm tubing (0.5-0.7mm wall thickness)
- Pair with AS420F series fittings for vibration environments
- Use ASL10 lubricant for high-cycle (>1M operations) applications
| Property | Property Value |
|---|---|
| sku | APE10 |
