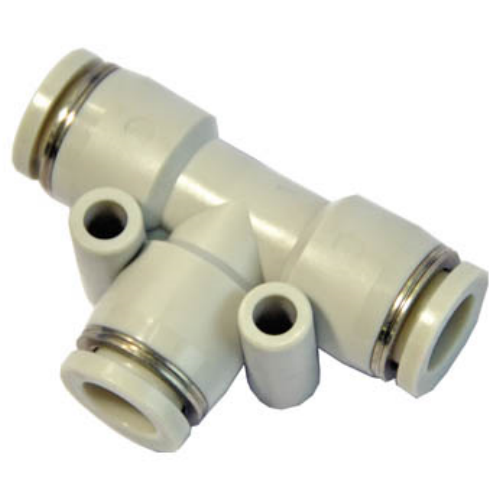

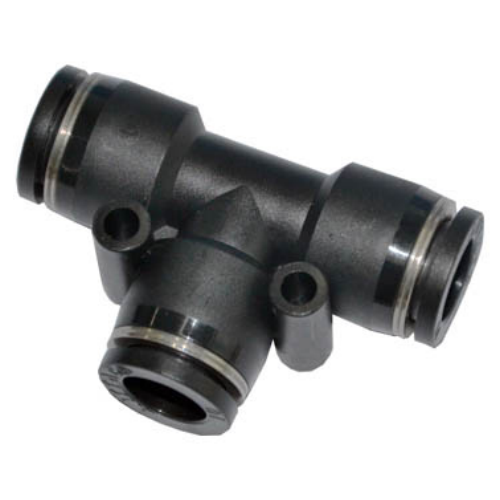

Airtac APE Tee Fitting APE14
2. Available in multiple configurations and sizes to accommodate diverse pneumatic system requirements;
3. Features superior flow characteristics achieving throughput equivalent to the nominal inner diameter of connected tubing;
4. Incorporates push-to-connect design for rapid tubing installation while maintaining secure, vibration-resistant connections.
Category: T-Type Tee Fittings , Brand: AirTAC , Series: APE
AirTAC APE T-Type Tee Fitting APE14 Technical Details
- Model: APE14 (T-Type Tee)
- Thread standard: BSPP (G-thread)
- Port configuration: 1/4" (PT1/4) triple female threads
- Material: Lead-free brass (CuZn39Pb0.5) with electroless nickel plating
- Pressure rating: 0.05-1.0 MPa (7-145 psi)
- Burst pressure: ≥3.0 MPa (435 psi)
- Operating temperature: -5℃ to 80℃ (23℉ to 176℉)
- Flow coefficient (Cv): 0.45
- Seal material: NBR (Nitrile) O-rings
- Surface hardness: HV200-250
- Weight: 22g ±1g
- Dimensions: 21.5mm (L) × 21.5mm (W) × 21.5mm (H)
- Torque resistance: ≤1.5N·m tightening torque
- Corrosion resistance: 96hrs salt spray test (NSS)
Precision-engineered brass tee connector featuring triple female ports with leak-proof design. The hexagonal body allows tool-assisted installation while the electroless nickel plating provides enhanced corrosion resistance. Compatible with pneumatic fluids including lubricated air and inert gases.
- Branch line connections in pneumatic control systems
- Air preparation unit plumbing
- Modular pneumatic circuit prototyping
- Industrial automation equipment manifolds
- Compressed air distribution in packaging machinery
Installation guidelines:
Apply thread sealant (PTFE tape or liquid sealant) to male threads only.
Avoid cross-threading by hand-tightening 2-3 turns before final torque.
Maximum recommended cycle rate: 1Hz continuous operation.
