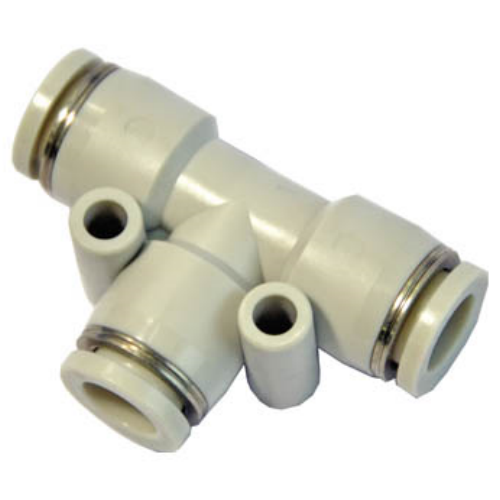

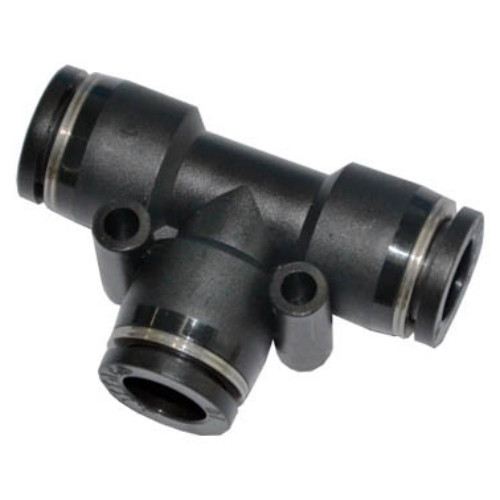

Airtac APE Tee Fitting APE16
2. Available in multiple configurations and sizes to accommodate diverse pneumatic system requirements;
3. Features superior flow characteristics achieving throughput equivalent to the nominal inner diameter of connected tubing;
4. Incorporates push-to-connect design for rapid tubing installation while maintaining secure, vibration-resistant connections.
Category: T-Type Tee Fittings , Brand: AirTAC , Series: APE
AirTAC APE T-Type Tee Joint APE16 Technical Specifications
- Model: APE16
- Type: T-shaped pneumatic tee connector
- Thread Standard: Metric (M5×0.8 thread pitch)
- Port Configuration: Three M5 female threads (ISO 6149 standard)
- Material: Anodized aluminum alloy (AL6063-T5)
- Surface Treatment: Black electrophoretic coating
- Pressure Range: 0-1.0 MPa (145 psi)
- Temperature Range: -20℃ to 80℃
- Seal Type: Embedded NBR O-ring (Shore A 70±5)
- Weight: 48±2g
- Dimensions: 32mm(L) × 32mm(W) × 28mm(H)
- Flow Rate: 300 NL/min @ 0.5MPa
- Leakage Rate: ≤0.1 mL/min @ 0.6MPa
- Certifications: RoHS compliant, REACH SVHC-free
Precision-machined tee connector with 120° flow path optimization, featuring anti-vibration grooves and corrosion-resistant construction. The hexagonal body design allows tool-assisted tightening (8mm wrench size). Compatible with ISO 15407-1 standard pneumatic systems. Internal flow channels are deburred and polished for minimal pressure drop.
- Branch line distribution in pneumatic control panels
- Modular assembly of automation equipment manifolds
- Air tool supply line splitting in automotive assembly lines
- Medical device pneumatic circuit connections
- Packaging machine actuator networks
Installation Guide:
Apply thread sealant (LOCTITE 5452 recommended) on male threads before assembly.
Tightening torque should not exceed 1.2N·m. Perform pressure test at 1.5× working
pressure after installation. Avoid cross-threading by hand-starting all connections.
| Property | Property Value |
|---|---|
| sku | APE16 |
