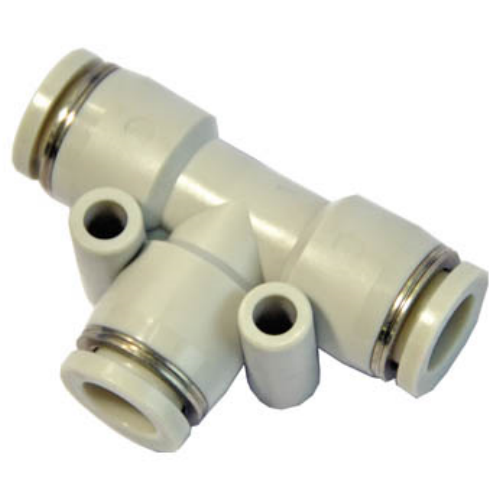

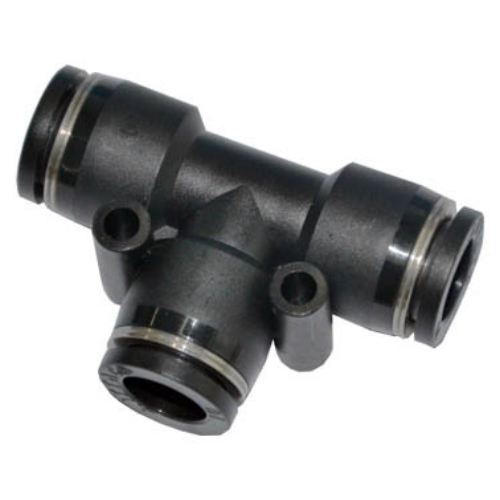

Airtac APE Tee Fitting APE4
2. Available in multiple configurations and sizes to accommodate diverse pneumatic system requirements;
3. Features superior flow characteristics achieving throughput equivalent to the nominal inner diameter of connected tubing;
4. Incorporates push-to-connect design for rapid tubing installation while maintaining secure, vibration-resistant connections.
Category: T-Type Tee Fittings , Brand: AirTAC , Series: APE
AirTAC APE T-Type Tee Joint APE4 Technical Details
- Model: APE4 Series T-Type Tee
- Type: Equal-diameter pneumatic tee connector
- Material: Nickel-plated brass (standard), stainless steel optional
- Thread type: Metric (M5×0.8) / BSPP (G1/8) / NPT (1/8") variants
- Port configuration: Three-way equal flow distribution
- Pressure range: 0.05-1.0 MPa (7-145 PSI)
- Temperature range: -20℃ to 80℃ (NBR seals)
- Weight: 18.5g ±0.3g (brass version)
- Dimensions: 40mm(L) × 15mm(W) × 15mm(H)
- Surface treatment: Electroless nickel plating (5-8μm)
- Seal material: NBR (standard), FKM optional
- Proof pressure: 1.5 MPa
- Leakage: ≤0.1 mL/min @ 0.5 MPa
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
Precision-machined tee connector with 360° rotatable ports for flexible piping layouts. Features anti-corrosion nickel plating and precision ground threads (ISO 1179 standard) for leak-free connections. The compact T-shape design minimizes pressure drop while maintaining flow efficiency.
- Branch line creation in pneumatic automation systems
- Modular assembly in packaging machinery air circuits
- Sensor mounting junctions in robotic systems
- Medical device pneumatic distribution nodes
- Compressed air networks in semiconductor tools
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads. Tighten to 1.2-1.8 N·m torque using backup wrench on hex flats.
Avoid overtightening - maximum rotation after contact is 1.5 turns. Compatible with ø4mm tubing (ID).
