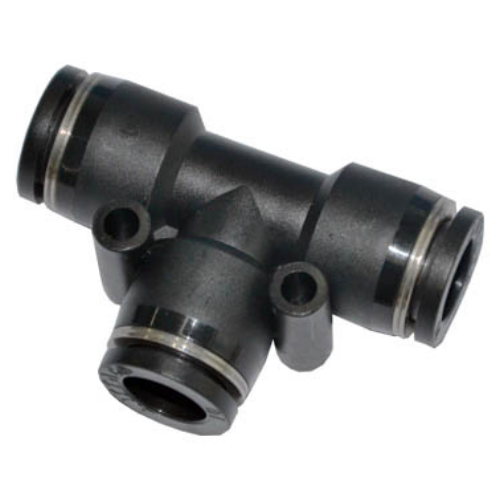

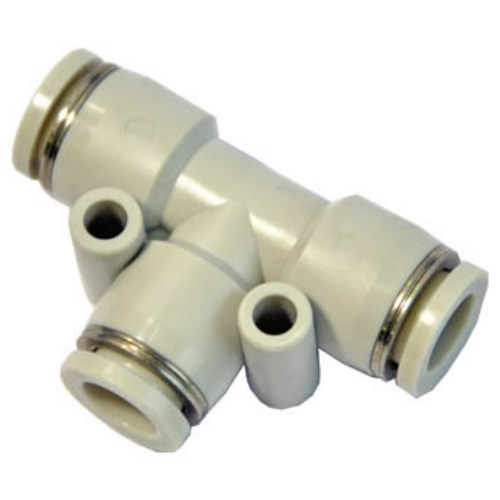

Airtac APE Tee Fitting APE6
2. Available in multiple configurations and sizes to accommodate diverse pneumatic system requirements;
3. Features superior flow characteristics achieving throughput equivalent to the nominal inner diameter of connected tubing;
4. Incorporates push-to-connect design for rapid tubing installation while maintaining secure, vibration-resistant connections.
Category: T-Type Tee Fittings , Brand: AirTAC , Series: APE
AirTAC APE T-Type Tee Fitting APE6 Technical Specifications
- Model: APE6
- Type: T-shaped pneumatic tee connector
- Material: Nickel-plated brass (stainless steel variant available)
- Thread standard: Metric (M5) & BSPP (G1/8) compatible
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Surface hardness: HV0.3 ≥210
- Weight: 22g ±0.5g
- Dimensions: 24mm(L) × 24mm(W) × 24mm(H)
- Seal type: Precision-machined metal-to-metal seal with optional O-ring
- Flow coefficient (Cv): 0.12
- Vibration resistance: 10-2000Hz, 15G acceleration
- Certification: RoHS compliant, ISO 6150-1 standard
High-density forged tee connector with triple-port configuration (1 input/2 output), engineered for stable flow distribution in compact pneumatic systems. Features anti-vibration grooves and corrosion-resistant plating, compatible with both air and inert gas applications. Includes self-aligning threads to prevent cross-threading during installation.
- Modular pneumatic circuit branching in automation lines
- Tooling machine air supply distribution
- Medical device gas line splitting
- Robotic end-effector pneumatic control
- Laboratory instrumentation manifold systems
Installation protocol:
Apply 360° even torque (max 2.5N·m) using crowfoot wrench.
Use PTFE tape or liquid sealant ONLY on male threads.
Perform pressure test at 1.75x operating pressure after installation.
| Property | Property Value |
|---|---|
| sku | APE6 |
