Airtac APE Tee Fitting APE8
2. Available in multiple configurations and sizes to accommodate diverse pneumatic system requirements;
3. Features superior flow characteristics achieving throughput equivalent to the nominal inner diameter of connected tubing;
4. Incorporates push-to-connect design for rapid tubing installation while maintaining secure, vibration-resistant connections.
Category: T-Type Tee Fittings , Brand: AirTAC , Series: APE

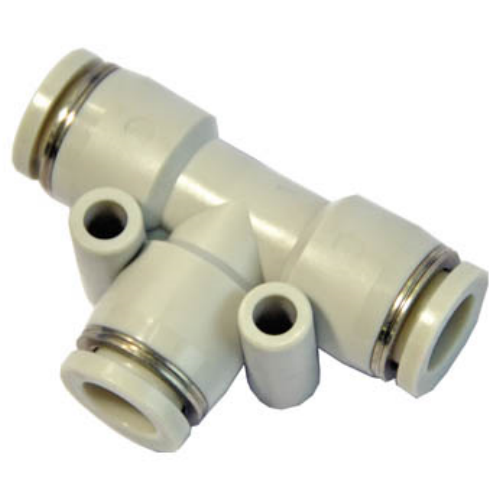

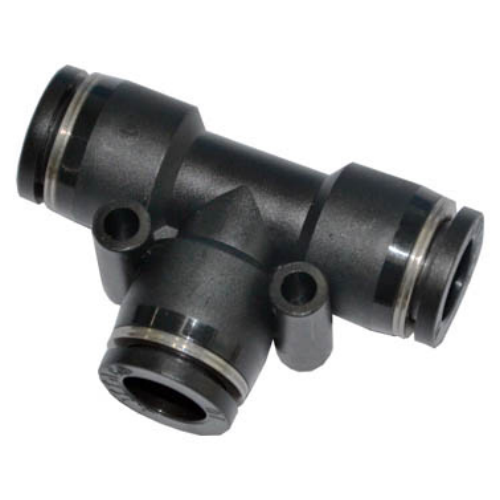

AirTAC APE T-Type Tee Joint APE8 Technical Details
- Model: APE8
- Type: T-shaped triple port connector (equal bore)
- Thread standard: Metric (M5) / Optional BSPP (G1/8)
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-rings
- Pressure range: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃
- Flow coefficient (Cv): 0.15
- Weight: 15g ±1g
- Dimensions: 24mm (L) × 16mm (W) × 16mm (H)
- Surface finish: Electroless nickel plating (8-12μm)
- Leakage rate: <0.1 NL/min @ 0.5MPa
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
Precision-engineered tee connector featuring triple 8mm OD tube compatibility with 60° conical seat design for bubble-tight sealing. The hexagonal body allows 8mm wrench installation while preventing rotation during maintenance. Includes built-in strain relief grooves to prevent tubing kinks at connection points.
- Branch line creation in pneumatic control circuits
- Modular assembly systems requiring flow division
- Sensor mounting air line distribution
- Medical device pneumatic manifolds
- Robotic end-effector air supply networks
- Laboratory instrumentation gas distribution
Installation protocol:
Use 8mm open-end wrench for body tightening (max 2.5N·m torque).
Insert tubes until 1mm gap remains between tube end and internal stop.
Perform pressure test at 1.25× system pressure after installation.
| Property | Property Value |
|---|---|
| sku | APE8 |
