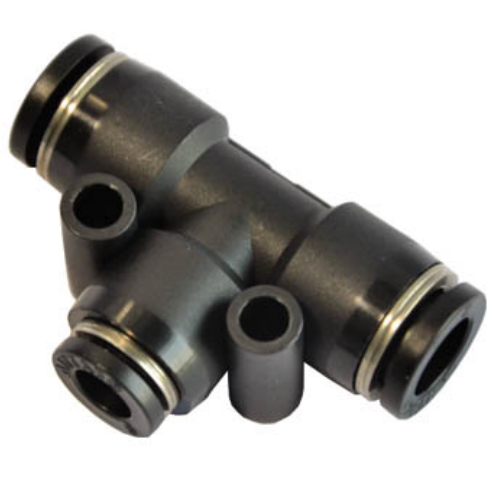

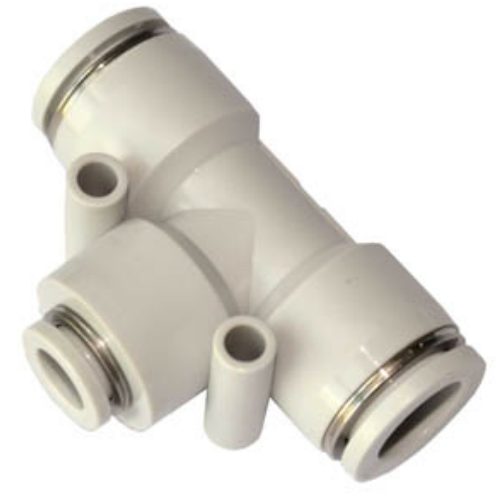

Airtac APEG Reducing Tee Fitting APEG10-8
2、Comprehensive model specifications for extensive application across pneumatic systems;
3、Optimized flow geometry maintains equivalent flow capacity to connected tubing's inner diameter;
4、Tool-free push-to-connect design ensures secure tube retention with vibration-resistant durability.
Category: T-Type Reducing Tee Connectors , Brand: AirTAC , Series: APEG
AirTAC APEG Reducing Tee Connector APEG10-8 Technical Details
- Model: APEG10-8 (Metric Series)
- Type: Step-down tee with mixed thread sizes
- Material: Nickel-plated brass (base), NBR seals
- Port configurations:
- Main through port: G1/8 (8mm tube OD)
- Branch port: G1/4 (10mm tube OD)
- Thread type: BSPP parallel threads
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (continuous)
- Proof pressure: 1.5 MPa
- Weight: 52g ±2g
- Dimensions: 38mm(L) × 28mm(W) × 28mm(H)
- Surface roughness: Ra ≤3.2μm
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Multi-directional flow distributor enabling branch circuit creation in compact pneumatic systems. Features precision-machined leak-proof threads with 360° swivel capability for flexible tubing alignment. Zinc-nickel composite plating provides corrosion resistance exceeding 96hrs salt spray test.
- Air compressor distribution networks requiring flow division
- Robotic arm tool changers with mixed diameter lines
- CNC machine coolant line conversions
- Packaging equipment pressure gauge branching
- Laboratory pneumatic tool manifolds
Mounting protocol:
Apply 2-3 wraps of PTFE tape on male threads (clockwise winding).
Hand-tighten plus 1/4 turn with wrench. Avoid overtightening beyond
15N·m torque. Pressure test at 1.25× system pressure post-installation.
| Property | Property Value |
|---|---|
| sku | APEG10-8 |
