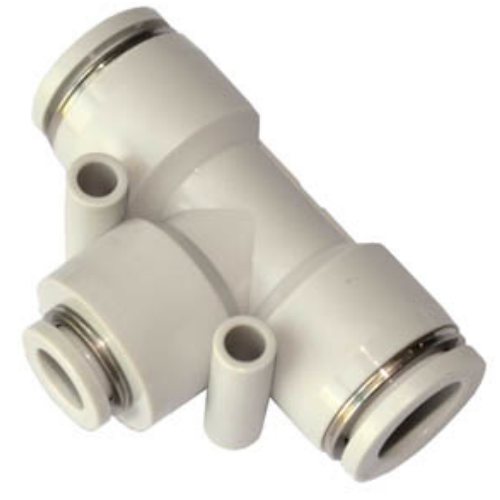

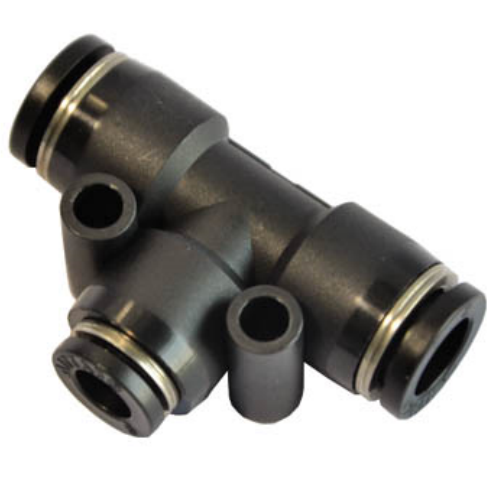

Airtac APEG Reducing Tee Fitting APEG12-10
2、Comprehensive model specifications for extensive application across pneumatic systems;
3、Optimized flow geometry maintains equivalent flow capacity to connected tubing's inner diameter;
4、Tool-free push-to-connect design ensures secure tube retention with vibration-resistant durability.
Category: T-Type Reducing Tee Connectors , Brand: AirTAC , Series: APEG
AirTAC APEG Reducing Tee Fitting APEG12-10 Specifications
- Model: APEG12-10
- Type: Reducing tee connector (stepped bore)
- Material: Anodized aluminum alloy (AL6063-T5)
- Thread type: Metric parallel threads (M12×1.5 & M10×1.25)
- Compatible tube OD: 12mm (main port) & 10mm (branch port)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃
- Seal material: HNBR O-rings (high nitrile)
- Surface hardness: HV 0.3/15 ≥12 (anodized layer)
- Weight: 48g ±2g
- Dimensions: 30mm (L) × 25mm (W) × 25mm (H)
- Torque limit: 3.5-4.0 N·m during installation
- Corrosion resistance: 96hrs salt spray test passed
Precision-engineered reducing tee for pneumatic systems requiring branch line connections between different tube diameters. Features dual-thread configuration with color-coded blue anodized finish for quick identification. The internal flow path maintains 85%+ original flow rate with optimized turbulence reduction.
- Air compressor distribution networks
- Robotic arm pneumatic circuits
- CNC machine tool air supply branching
- Packaging machine multi-diameter tubing systems
- Semiconductor cleanroom equipment
Installation note:
Apply thread sealant only on male threads (not on tube inserts).
Tighten using 17mm open-end wrench on hex flats - do NOT overtighten.
Maximum angular misalignment tolerance: ±3°.
| Property | Property Value |
|---|---|
| sku | APEG12-10 |
