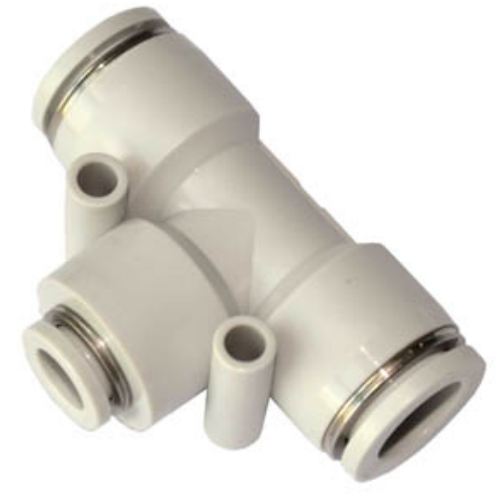

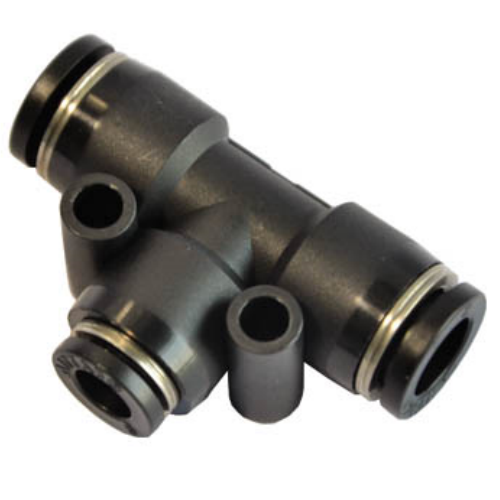

Airtac APEG Reducing Tee Fitting APEG6-4
2、Comprehensive model specifications for extensive application across pneumatic systems;
3、Optimized flow geometry maintains equivalent flow capacity to connected tubing's inner diameter;
4、Tool-free push-to-connect design ensures secure tube retention with vibration-resistant durability.
Category: T-Type Reducing Tee Connectors , Brand: AirTAC , Series: APEG
AirTAC APEG Reducing Tee Fitting APEG6-4 Technical Details
- Model: APEG6-4 (Female Thread x Female Thread x Female Thread)
- Thread standards: M5×0.8 (6mm port) × M5×0.8 (6mm port) × PT1/8 (4mm port)
- Material: Brass (nickel-plated)
- Seal material: NBR (nitrile) rubber
- Max working pressure: 1.5 MPa
- Temperature range: -5℃ to 80℃ (with NBR seals)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Weight: 18.5±0.5g
- Dimensions: 30mm (L) × 19.5mm (W) × 14.5mm (H)
- Surface roughness: Ra≤3.2μm
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-engineered reducing tee for hybrid pneumatic line connections, featuring corrosion-resistant nickel plating and dual sealing surfaces. The asymmetrical design enables space-saving installation in multi-line configurations while maintaining 360° rotatable ports for flexible tubing alignment.
- Branch line creation in compact automation cells
- Pressure gauge manifold connections
- Tool changer pneumatic circuits
- Medical device gas distribution systems
- Multi-axis robot end effector plumbing
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (excluding tapered threads).
Hand-tighten plus 1/4~1/2 turn with wrench. Avoid overtightening beyond
15N·m torque to prevent port deformation. Perform pressure test at 1.75MPa
after installation.
| Property | Property Value |
|---|---|
| sku | APEG6-4 |
