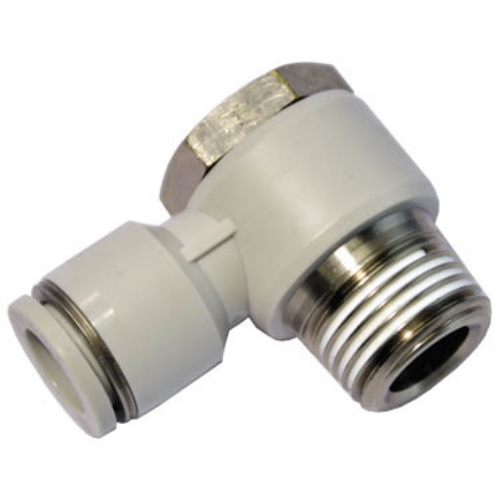

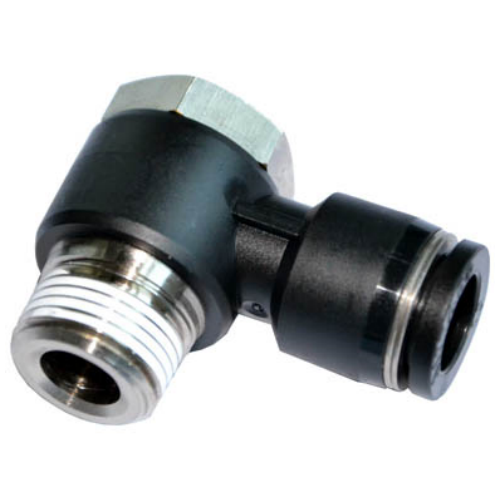

Airtac APH Hex Head Connector APH12-01
$4.36
Regular price
$11.86
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APH12-01
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Available in multiple models and specifications, widely applicable in various pneumatic systems;
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
Installation note:
Apply thread sealant only on male threads (PT standard). Use calibrated torque wrench to prevent
brass deformation. Perform pressure test at 1.5x working pressure after installation.
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
AirTAC APH12-01 Hex Nipple Connector Specifications
- Model: APH12-01
- Type: Male-to-Female Hexagonal Threaded Connector
- Thread Standard: G1/8 (BSPP)
- Material: Brass with nickel plating (CuZn39Pb3)
- Pressure Range: 0-1.0 MPa (145 psi)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Seal Material: NBR (Nitrile Rubber)
- Hex Size: 12mm across flats
- Thread Engagement: 7.5mm minimum
- Surface Treatment: Electroless nickel plating (5-8μm)
- Torque Specification: 1.5-2.0 N·m (13-17 lb-in)
- Weight: ~15g
- Dimensions: 25mm(Length) × 16mm(Width) × 16mm(Height)
Precision-machined pneumatic connector featuring anti-vibration grooves and dual O-ring design for leak-free performance. The hexagonal body allows tool-assisted tightening in confined spaces. Compatible with most pneumatic tubing materials including PU, NY, and PE.
Typical Applications:
- Pneumatic cylinder port connections
- Solenoid valve manifold assemblies
- Air preparation unit installations
- Robotic end-effector pneumatic circuits
- Medical equipment gas line interfaces
Installation note:
Apply thread sealant only on male threads (PT standard). Use calibrated torque wrench to prevent
brass deformation. Perform pressure test at 1.5x working pressure after installation.
Compatible Components:
- AirTAC PIS series push-in fittings
- ISO 1179-2 compliant adapters
- Metric pneumatic tubing (4mm/6mm/8mm OD)
| Property | Property Value |
|---|---|
| sku | APH12-01 |
