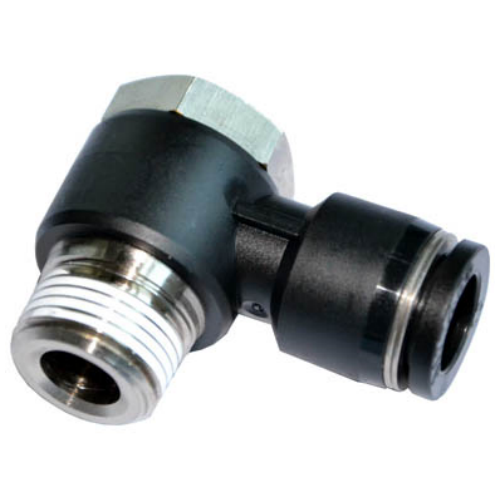

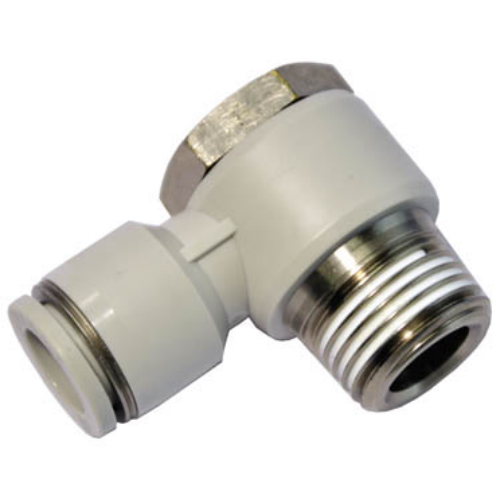

Airtac APH Hex Head Connector APH4-M10
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APH4-M10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Available in multiple models and specifications, widely applicable in various pneumatic systems;
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
Installation note:
Apply 2-3 N·m torque during installation. Use thread sealant only on male threads,
avoiding contact with O-ring surfaces. Maximum 120° rotation after initial contact.
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
AirTAC APH Hexagon Connector APH4-M10 Technical Specifications
- Model: APH4-M10
- Thread type: External hexagon (male thread)
- Port size: M10×1.0 metric thread
- Material: Brass (CuZn39Pb3) with nickel plating
- Seal material: NBR (Nitrile) O-ring
- Max working pressure: 1.5 MPa (15 bar)
- Temperature range: -20℃ to 80℃
- Hexagon size: 14mm AF (across flats)
- Total length: 25±0.5mm
- Thread engagement length: 12mm
- Weight: 18.5±0.3g
- Dimensions: 14mm(W) × 14mm(H) × 25mm(L)
- Surface roughness: Ra ≤3.2μm
- Certification: RoHS compliant
Precision-machined pneumatic connector featuring corrosion-resistant nickel plating and dual sealing surfaces. The hexagonal design allows tool-assisted tightening with standard 14mm wrenches. Compatible with 6mm OD pneumatic tubing (requires separate ferrule).
Typical Applications:
- Pneumatic cylinder port connections
- Modular pneumatic system assembly
- Air tool quick-connect adapters
- Industrial automation equipment plumbing
- Compressed air distribution manifolds
Installation note:
Apply 2-3 N·m torque during installation. Use thread sealant only on male threads,
avoiding contact with O-ring surfaces. Maximum 120° rotation after initial contact.
| Property | Property Value |
|---|---|
| sku | APH4-M10 |
