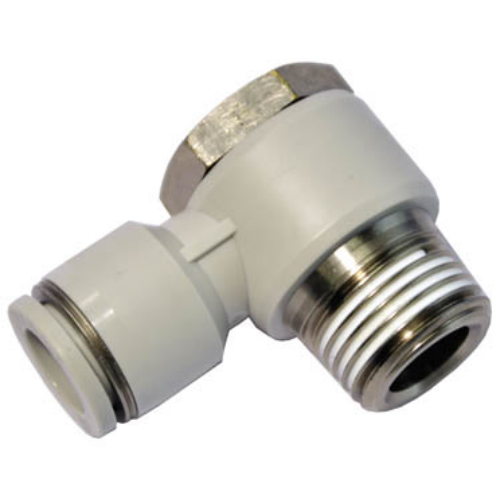

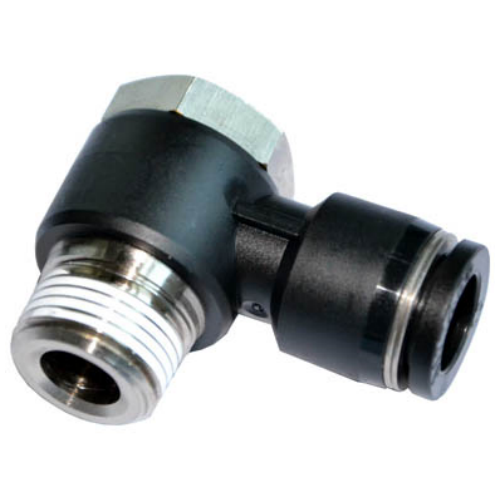

Airtac APH Hex Head Connector APH4-M12
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APH4-M12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Available in multiple models and specifications, widely applicable in various pneumatic systems;
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
Maintenance protocol:
Apply PTFE tape clockwise on male threads (2.5 wraps max) before installation.
Torque sequence: Finger-tighten + 1/4 turn with wrench. Over-tightening may deform sealing geometry.
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
AirTAC APH Hex Nipple Connector APH4-M12 Technical Details
- Model: APH4-M12 (Standard hex nipple series)
- Thread type: M12×1.5 male thread (metric fine)
- Material: Nickel-plated brass (anti-corrosion finish)
- Seal type: Precision-molded NBR O-ring
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Hex size: 17mm across flats (wrench engagement surface)
- Surface hardness: ≥HV200 (electroless nickel coating)
- Weight: 22g ±0.5g (including packaging)
- Dimensions: 25mm(L) × 17mm(W) × 17mm(H)
- Thread length: 12mm (full engagement length)
- Proof pressure: 3.0 MPa (435 PSI sustained for 30s)
Heavy-duty pneumatic connector featuring CNC-machined threads and dual sealing surfaces. The hexagonal body allows tool-assisted tightening up to 4.5N·m torque, with anti-vibration grooves preventing self-loosening. Compatible with ISO 1179-2 standard ports.
Installation Scenarios:
- Pneumatic cylinder port extensions
- Modular manifold block interconnections
- Sensor mounting brackets in robotic arms
- Compressed air tool quick-connect adapters
- Vacuum system tubing junctions
Maintenance protocol:
Apply PTFE tape clockwise on male threads (2.5 wraps max) before installation.
Torque sequence: Finger-tighten + 1/4 turn with wrench. Over-tightening may deform sealing geometry.
Matched Components:
- Pneumatic hoses: 6mm ID polyurethane/PU tubes
- Thread adapters: M12×1.5 female to G1/8 male
- Sealant: LOCTITE 577 (for high-vibration environments)
| Property | Property Value |
|---|---|
| sku | APH4-M12 |
