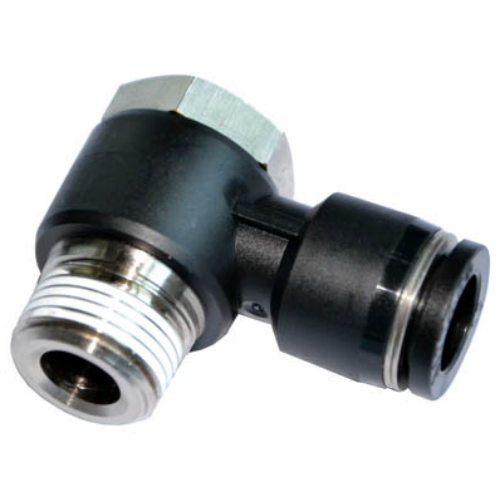

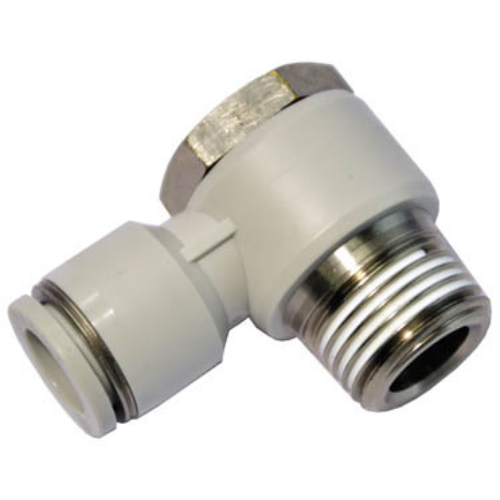

Airtac APH Hex Head Connector APH6-02
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APH6-02
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Available in multiple models and specifications, widely applicable in various pneumatic systems;
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
Installation protocol:
Apply thread sealant to male threads (PTFE tape not recommended).
Tighten using 8mm crowfoot wrench with torque limiter.
Perform pressure test at 1.25× working pressure after installation.
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
AirTAC APH Hexagon Connector APH6-02 Technical Specifications
- Model: APH6-02
- Thread Type: External hexagon (male thread)
- Port Size: 1/8" BSPP (G1/8 equivalent)
- Material: Brass CW617N (chrome-plated surface)
- Seal Material: NBR (Nitrile) O-ring
- Max Working Pressure: 1.5 MPa (15 bar/217.5 psi)
- Temperature Range: -20℃ to 80℃ (continuous use)
- Peak Temperature Resistance: 120℃ (intermittent)
- Torque Rating: 2.0-2.5 N·m installation torque
- Surface Hardness: HV0.3 130-250 (chrome layer)
- Weight: 8.2±0.3 grams
- Dimensions: 12mm (L) × 10mm (W) × 10mm (H)
- Hex Size: 8mm wrench flat
- Vibration Resistance: 10-2000 Hz, 20m/s²
- Certification: RoHS compliant
Precision-machined brass connector with dual-stage chrome plating for enhanced corrosion resistance in humid environments. Features anti-vibration grooves and 360° rotatable hex design for tool access in confined spaces. Compatible with pneumatic fluids and standard hydraulic oils.
Typical Applications:
- Pneumatic cylinder port connections
- Modular valve manifold assemblies
- Compressed air distribution systems
- CNC machine tool pneumatic circuits
- Packaging equipment air line junctions
- Robotic end-effector pneumatic fittings
Installation protocol:
Apply thread sealant to male threads (PTFE tape not recommended).
Tighten using 8mm crowfoot wrench with torque limiter.
Perform pressure test at 1.25× working pressure after installation.
| Property | Property Value |
|---|---|
| sku | APH6-02 |
