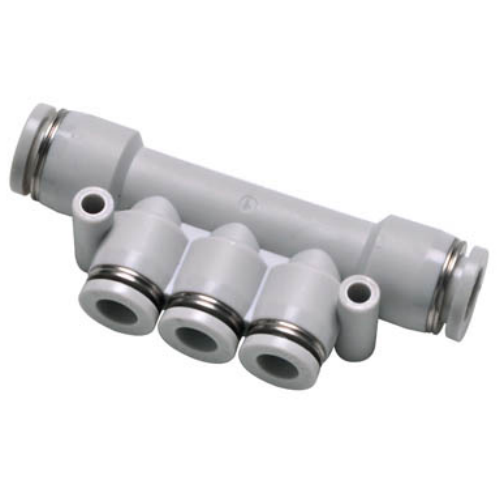

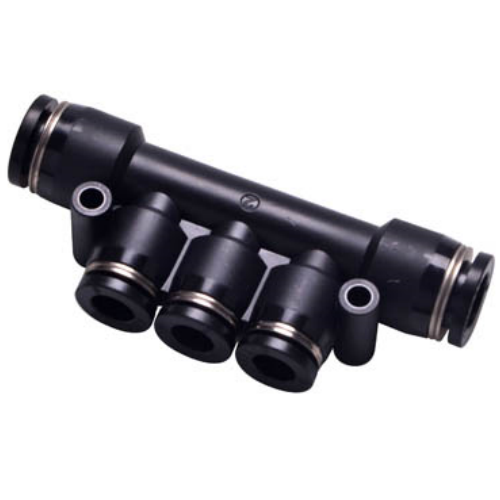

Airtac APK Five-way Fitting APK12
2. Available in multiple specifications with extensive compatibility across pneumatic systems;
3. Features optimized flow geometry allowing full-bore throughput equivalent to connected tubing's inner diameter;
4. Incorporates push-to-connect mechanism for tool-free tubing installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Five-Way Manifold Fittings | Brand: AIRTAC | Series: APK
AirTAC APK12 5-Way Connector Technical Details
- Model: APK12 Series
- Type: 5-port pneumatic connector (ISO standard)
- Thread specifications: PT1/8 (BSPP) & PT1/4 (BSPP) variants
- Material: Nickel-plated brass (standard)/Stainless steel (optional)
- Pressure range: 0.2–0.8 MPa (29–116 psi)
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile) rubber
- Port configuration: 1 supply, 2 outlets, 2 exhausts
- Surface treatment: Electrostatic epoxy coating (black)
- Weight: 32g ±0.5g
- Dimensions: 35mm(L) × 25mm(W) × 25mm(H)
- Torque limit: 1.5–2.0 N·m during installation
High-flow 5-way pneumatic manifold designed for directional control valve integration. Features dual exhaust ports with built-in silencer compatibility and corrosion-resistant construction. The 360° rotatable ports enable flexible piping layouts in confined spaces. Meets ISO 15407-1 standard for pneumatic component compatibility.
- Double-acting cylinder control systems
- Pneumatic valve island assemblies
- Automated production line manifolds
- Robotic end-effector air distribution
- Medical device pneumatic circuits
Installation protocol:
Apply PTFE tape clockwise on male threads (2 full wraps).
Avoid overtightening - use torque wrench for precise installation.
Compatible with tube OD: 4mm/6mm/8mm (specify variant when ordering).
| Property | Property Value |
|---|---|
| sku | APK12 |
