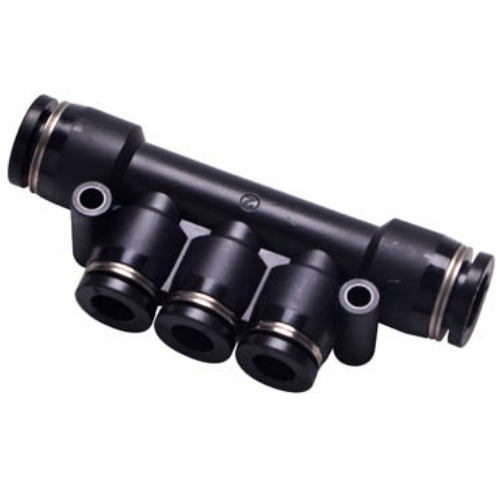

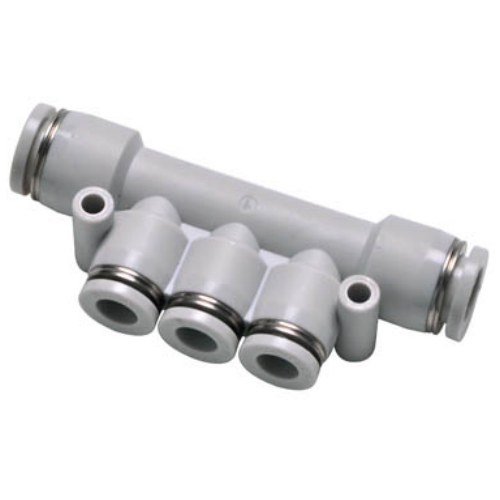

Airtac APK Five-way Fitting APK4
2. Available in multiple specifications with extensive compatibility across pneumatic systems;
3. Features optimized flow geometry allowing full-bore throughput equivalent to connected tubing's inner diameter;
4. Incorporates push-to-connect mechanism for tool-free tubing installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Five-Way Manifold Fittings | Brand: AIRTAC | Series: APK
AirTAC APK4 5-Way Quick Coupling Technical Details
- Model: APK4 Series (Standard Thread Type)
- Type: 5-port pneumatic quick connector
- Thread standard: G1/8 (BSPP)
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) rubber
- Max working pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃
- Flow rate: 1,200 NL/min (at 0.5 MPa)
- Weight: 80g ±2g
- Dimensions: 32mm(L) × 25mm(W) × 38mm(H)
- Leakage rate: ≤3 bubbles/min (ISO 6150 standard)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
High-flow 5-way pneumatic coupling featuring dual-lock mechanism for secure hose retention. The 360° rotatable design enables flexible piping arrangements in confined spaces. Nickel plating provides corrosion resistance for humid environments. Compatible with ISO 14743 and TPA standards.
- Modular pneumatic circuit assembly lines
- Plastic injection molding machine tool changers
- Industrial robot end-effector connections
- CNC machine coolant control systems
- Automated packaging equipment manifolds
Installation guidelines:
Apply 0.8-1.2 N·m torque during installation. Use thread sealant only on male threads.
Perform monthly leakage checks in high-cycle applications (>50,000 actuations/day).
